- Brand
- MikroTik
- Product Name

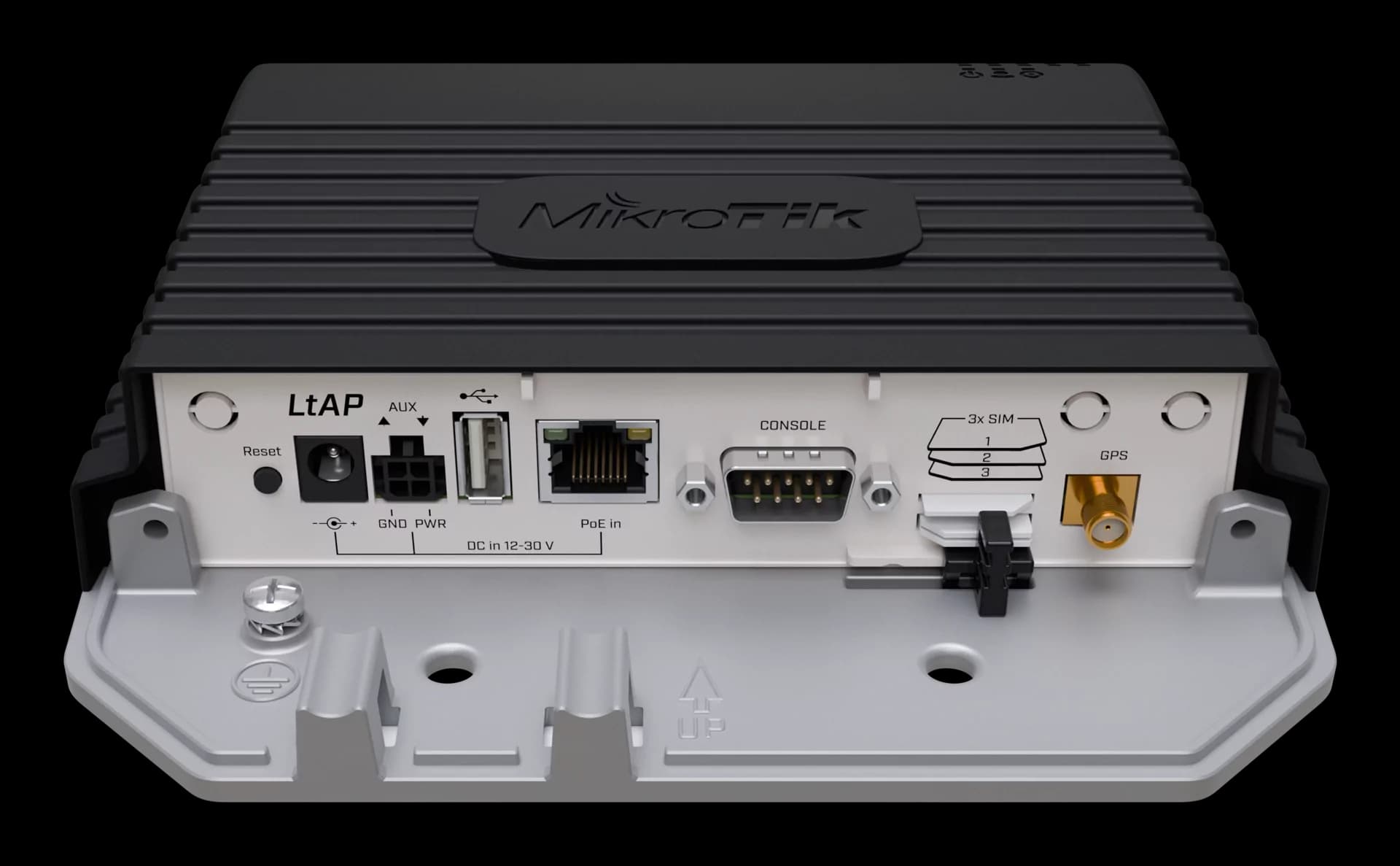

- LtAP LTE7 kit
- Product Code
- LtAP-2HnD&R11e-LTE7
- CPU
- MT7621AT
- CPU Architecture
- MMIPS
- CPU Core Count
- 2
- CPU Nominal Frequency
- 880 MHz
- CPU Threads
- 4
- RAM Capacity
- 128 MB
- RAM Type
- DDR3
- Storage Capacity
- 16 MB
- Storage Type
- FLASH
- Operating System
- RouterOS v7
- RouterOS License
- Level 4
- MTBF
- Approximately 200,000 hours at 25°C
- Operating Temperature
- -40°C to 70°C
- Dimensions
- 170 x 162 x 40 mm
- DC Inputs
- 3 (DC jack, PoE-in, Automotive)
- DC Jack Input Voltage
- 12-30 V
- PoE-in Input Voltage
- 12-30 V
- Automotive Input Voltage
- 12-27 V
- Power Adapter Rating
- 24 V, 1.2 A
- PoE-in Type
- Passive PoE
- Maximum Power Consumption
- 24 W
- Maximum Power Consumption Without Attachments
- 12 W
- Cooling
- Passive
- LTE Modem
- R11e-LTE7
- LTE Category
- Category 7 (Downlink: 300 Mbps; Uplink: 100 Mbps)
- LTE Downlink MIMO
- 2x2
- LTE Uplink MIMO
- 1x1
- LTE FDD Bands
- 1 (2100 MHz), 3 (1800 MHz), 5 (850 MHz), 7 (2600 MHz), 8 (900 MHz), 20 (800 MHz), 28 (700 MHz), 32 (1500 MHz)
- LTE TDD Bands
- 38 (2600 MHz), 40 (2300 MHz), 41 (2500 MHz)
- 3G Category
- R8 (Downlink: 42.2 Mbps; Uplink: 5.76 Mbps)
- 3G Bands
- 1 (2100 MHz), 3 (1800 MHz), 5 (850 MHz), 8 (900 MHz)
- TAC
- 35312597
- Wi-Fi Frequency
- 2.4 GHz
- Wi-Fi Standards
- 802.11b/g/n
- Wi-Fi Maximum Data Rate
- 300 Mbit/s
- Wi-Fi Chains
- 2
- Wi-Fi Generation
- Wi-Fi 4
- Wi-Fi Chip Model
- AR9382
- Wi-Fi Antenna Gain
- 2.5 dBi
- Ethernet Ports
- 1 x 10/100/1000 Ethernet
- SIM Slots
- 3 x Mini SIM (modem)
- Mini PCIe Slots
- 2
- Serial Console
- RS232
- USB Ports
- 1 x USB Type-A
- USB Interface
- USB 2.0
- Maximum USB Current
- 1 A
- USB Power Reset
- Yes
- GNSS Standard
- GPS
- LTE Antenna Connectors
- U.FL
- GPS Connector
- SMA
- Voltage Monitor
- Yes
- PCB Temperature Monitor
- Yes
- Ingress Protection
- IP54
- Certifications
- CE, E-MARK, EAC, RoHS
- Included Accessories
- 24 V 1.2 A power adapter; K-67 fastening set; 0.35 m 4-pin automotive adapter cable
