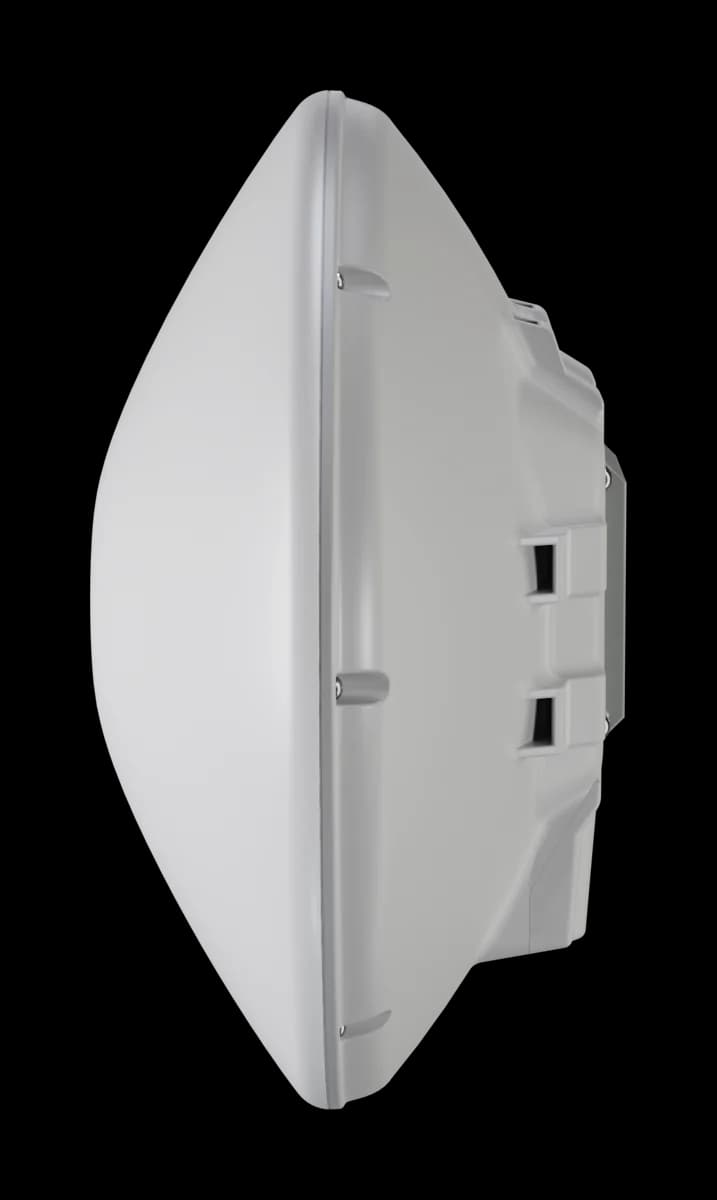

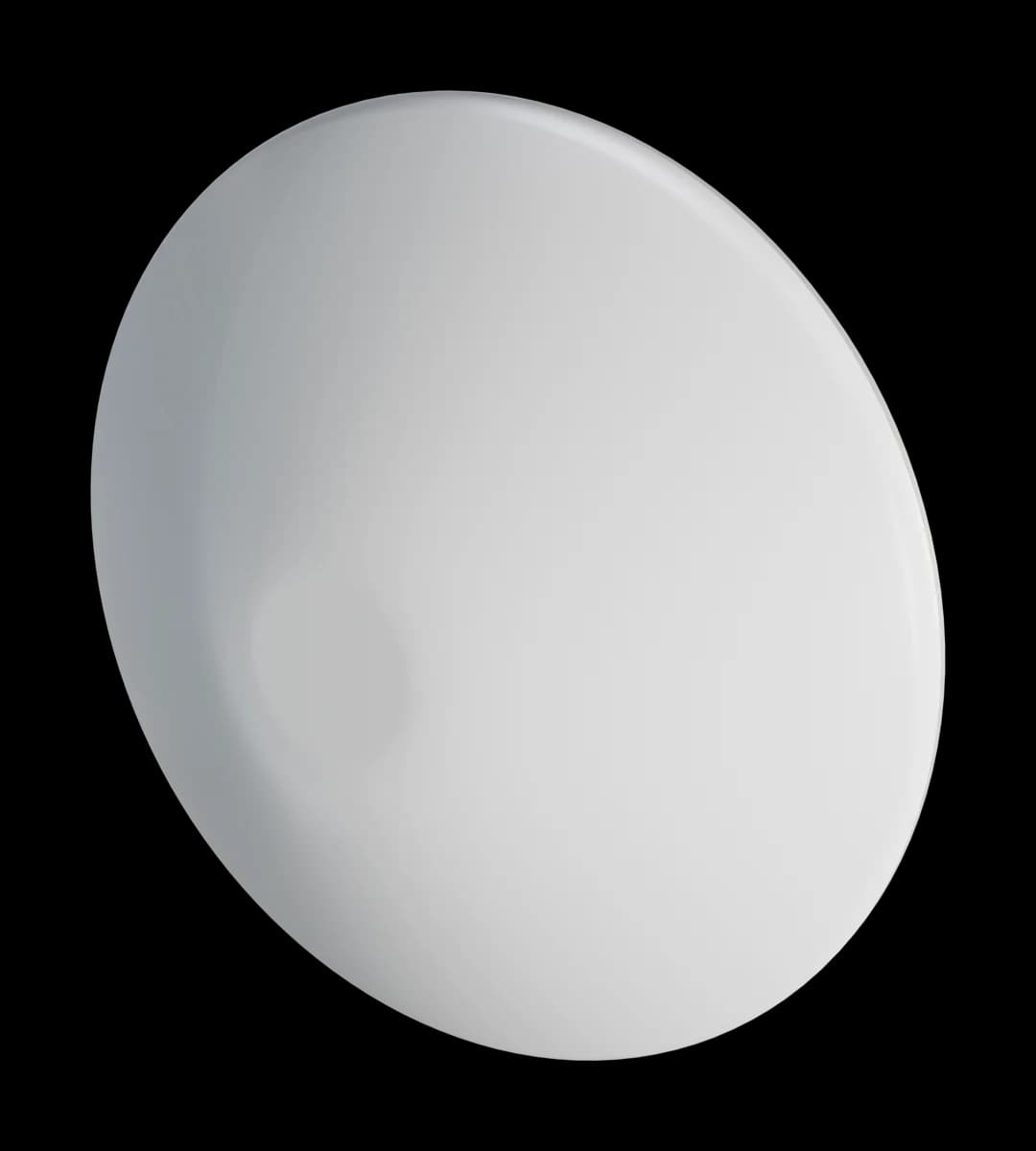

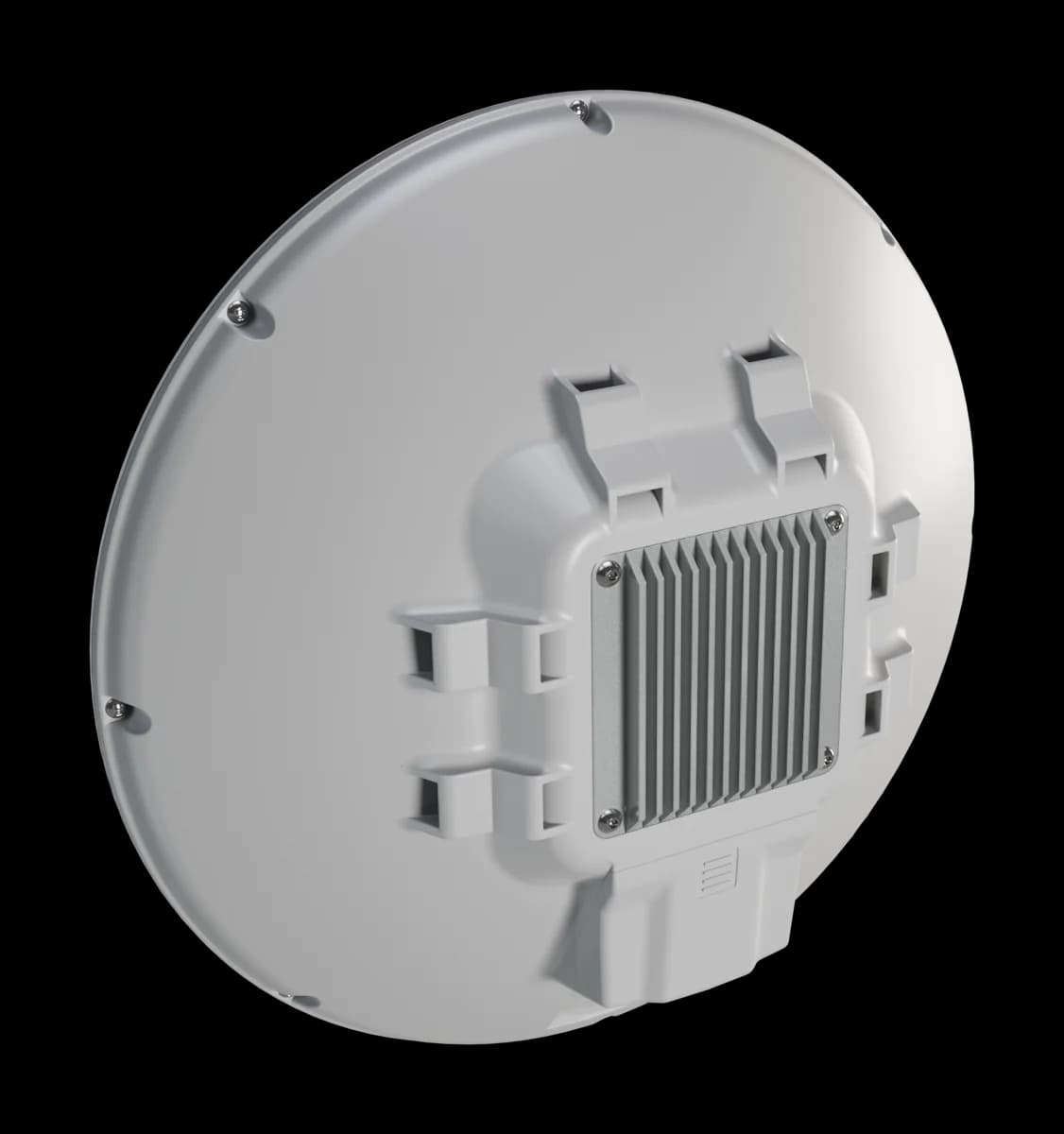

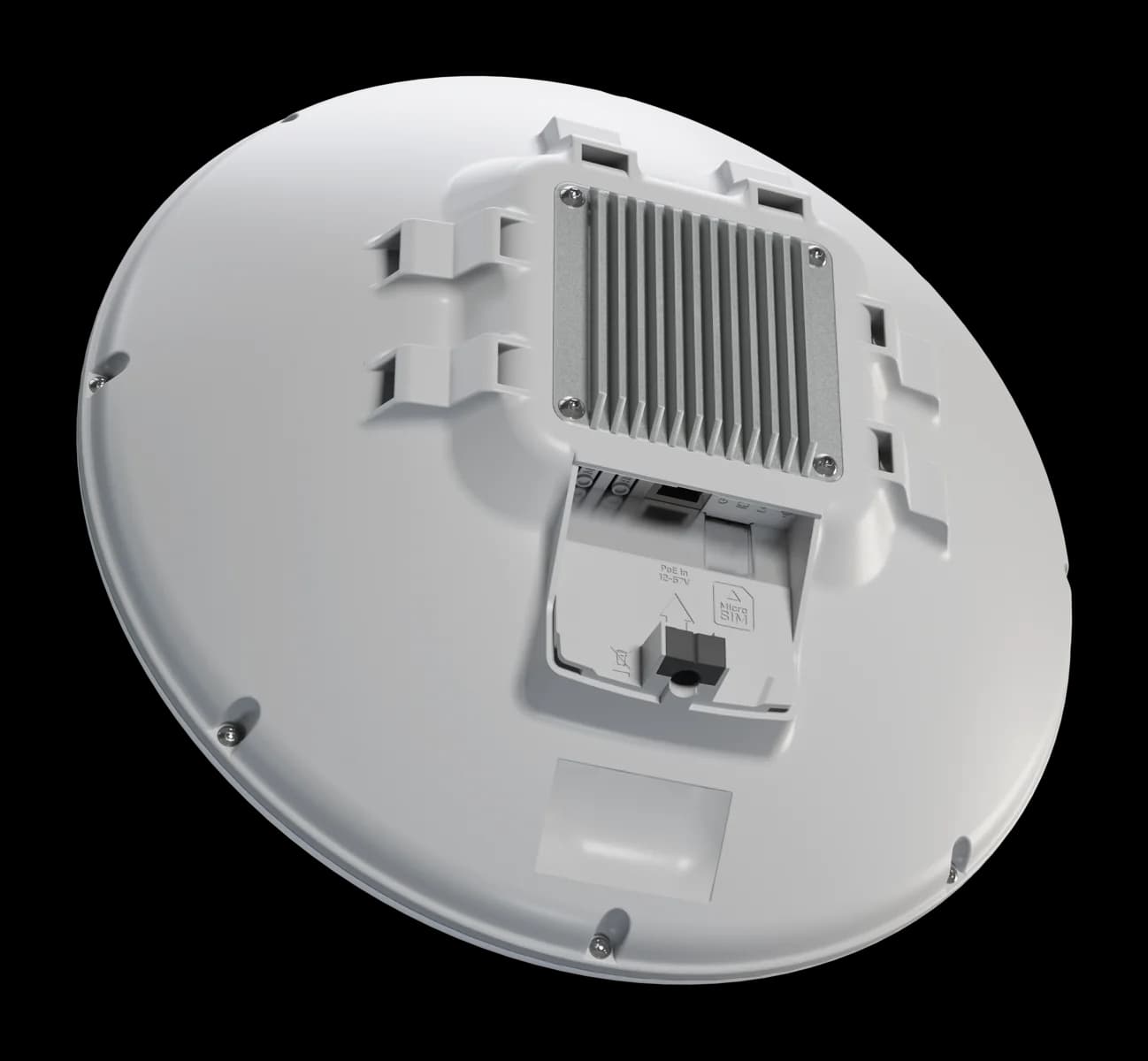

روتر LTE فضای باز MikroTik ATL LTE18 kit

مشخصات

Product code

ATLGM&EG18-EA

CPU model

88F3720

CPU nominal frequency

800 MHz

CPU cores

2

CPU threads

2

CPU architecture

ARM 64-bit

RAM

256 MB DDR3L

Storage

16 MB Flash

Ethernet ports

1 × 10/100/1000 Mbps

LTE modem

R11mL-EG18-EA

TAC

86981604

LTE category

18

LTE maximum data rate

1.2 Gbps downlink; 150 Mbps uplink

LTE FDD bands

1 (2100 MHz), 3 (1800 MHz), 5 (850 MHz), 7 (2600 MHz), 8 (900 MHz), 20 (800 MHz), 28 (700 MHz)

LTE TDD bands

38 (2600 MHz), 40 (2300 MHz), 41 (2500 MHz)

3G category

R8 (42.2 Mbps downlink; 11.2 Mbps uplink)

3G bands

1 (2100 MHz), 3 (1800 MHz), 5 (850 MHz), 8 (900 MHz)

LTE downlink MIMO

4×4

LTE uplink MIMO

1×1

SIM slot

1 × Micro SIM

M.2 slots

1

Antenna configuration

4 middle-band antennas (1.7–2.7 GHz); 2 low-band antennas (700 MHz–1 GHz)

Dimensions

315 mm diameter × 170 mm depth

Operating system

RouterOS v7

RouterOS license level

3

Tested ambient temperature

-40°C to 70°C

IP rating

IP54

Certifications

CE, EAC, RoHS

DC inputs

1 (PoE-in)

PoE input voltage

12–57 V DC

PoE standard

802.3af/at

Power adapter output

24 V DC, 0.8 A

Maximum power consumption

8 W

Cooling

Passive

MTBF

Approximately 200,000 hours at 25°C

Mode button

Yes

Included accessories

24 V 0.8 A power adapter; Gigabit PoE injector; hose clamp
