مودم و روتر MikroTik wAP ax LTE7 kit

مشخصات

Brand

MikroTik

Product Name

wAP ax LTE7 kit

Product Code

wAPGR-5HaxD2HaxD&R11e-LTE7

EAN

4752224009845

Dimensions

229 x 113 x 43 mm

Architecture

ARM 32bit

CPU

IPQ-5010

CPU Core Count

2

CPU Nominal Frequency

800 MHz

CPU Threads Count

2

Operating System

RouterOS v7

RouterOS License

Level 4

RAM

256 MB

Storage

128 MB NAND

LTE Category

Cat 7; 300 Mbps download, 100 Mbps upload

LTE MIMO

Downlink 2x2; Uplink 1x1

LTE FDD Bands

1 (2100 MHz), 3 (1800 MHz), 5 (850 MHz), 7 (2600 MHz), 8 (900 MHz), 20 (800 MHz), 28 (700 MHz), 32 (1500 MHz)

LTE TDD Bands

38 (2600 MHz), 40 (2300 MHz), 41 (2500 MHz)

Carrier Aggregation

2xCA

3G Category

R8; 42.2 Mbps download, 5.76 Mbps upload

3G Bands

1 (2100 MHz), 3 (1800 MHz), 5 (850 MHz), 8 (900 MHz)

Wireless Generation

Wi-Fi 6

2.4 GHz Wireless Standards

802.11b/g/n/ax

2.4 GHz Maximum Data Rate

574 Mbps

2.4 GHz Chains

2

2.4 GHz Antenna Gain

6.9 dBi

2.4 GHz Chip Model

IPQ-5010

5 GHz Wireless Standards

802.11a/n/ac/ax

5 GHz Maximum Data Rate

1200 Mbps

5 GHz Chains

2

5 GHz Antenna Gain

7 dBi

5 GHz Chip Model

QCN-6102

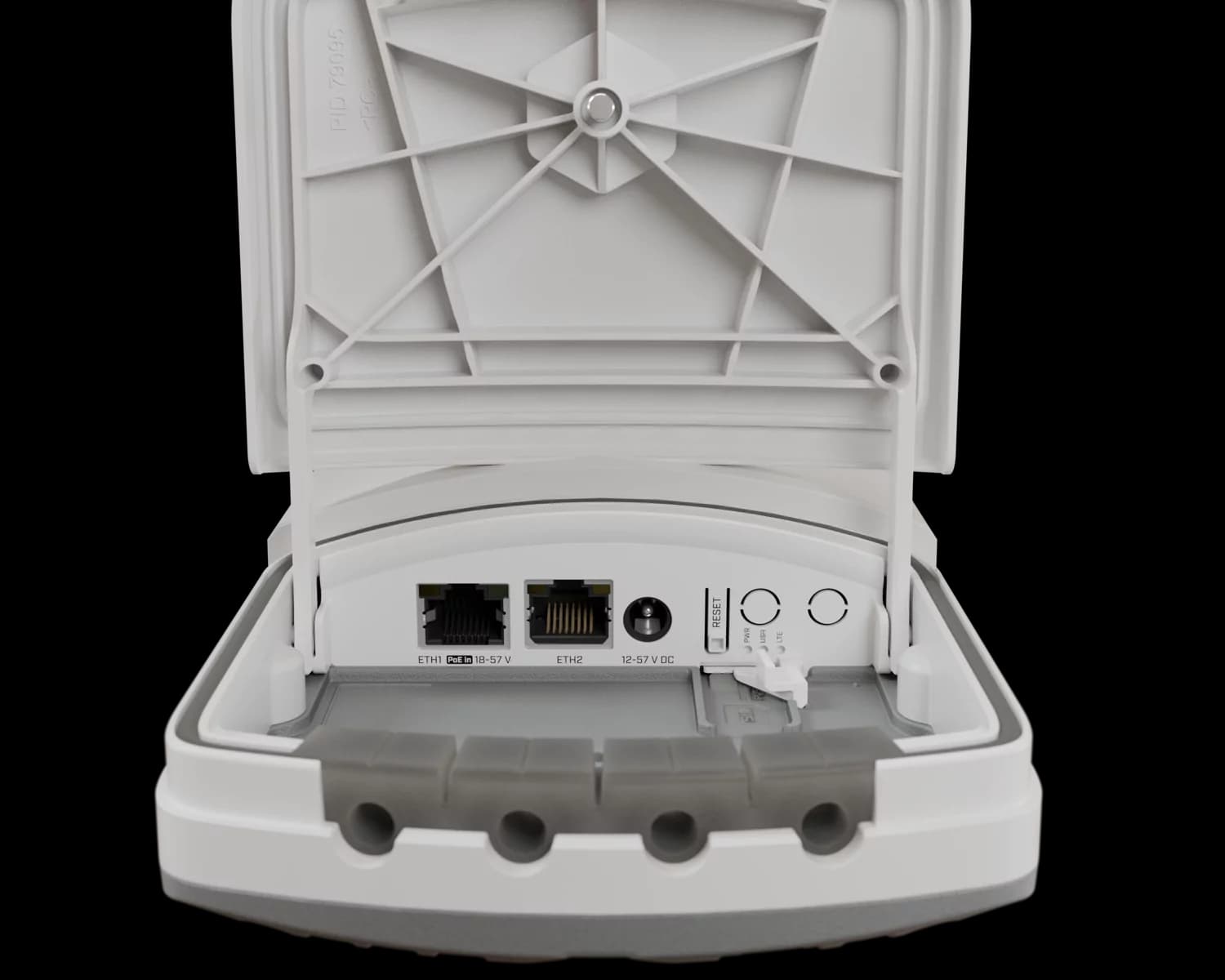

Ethernet Ports

2 x 10/100/1000 Mbps

SIM Slot

1 x Micro SIM

Mini PCIe Slots

1

DC Inputs

2; DC jack and PoE-in

DC Jack Input Voltage

12-57 V

PoE-in Standard

802.3af/at

PoE-in Input Voltage

18-57 V

Maximum Power Consumption

13 W

Cooling

Passive

Ingress Protection

IP66

Tested Ambient Temperature

-30°C to 70°C

MTBF

Approximately 200,000 hours at 25°C

Certifications

CE, EAC, RoHS

Included Parts

24 V 0.8 A power adapter; Gigabit PoE injector; hose clamp; K-95 kit; plastic tie strap
