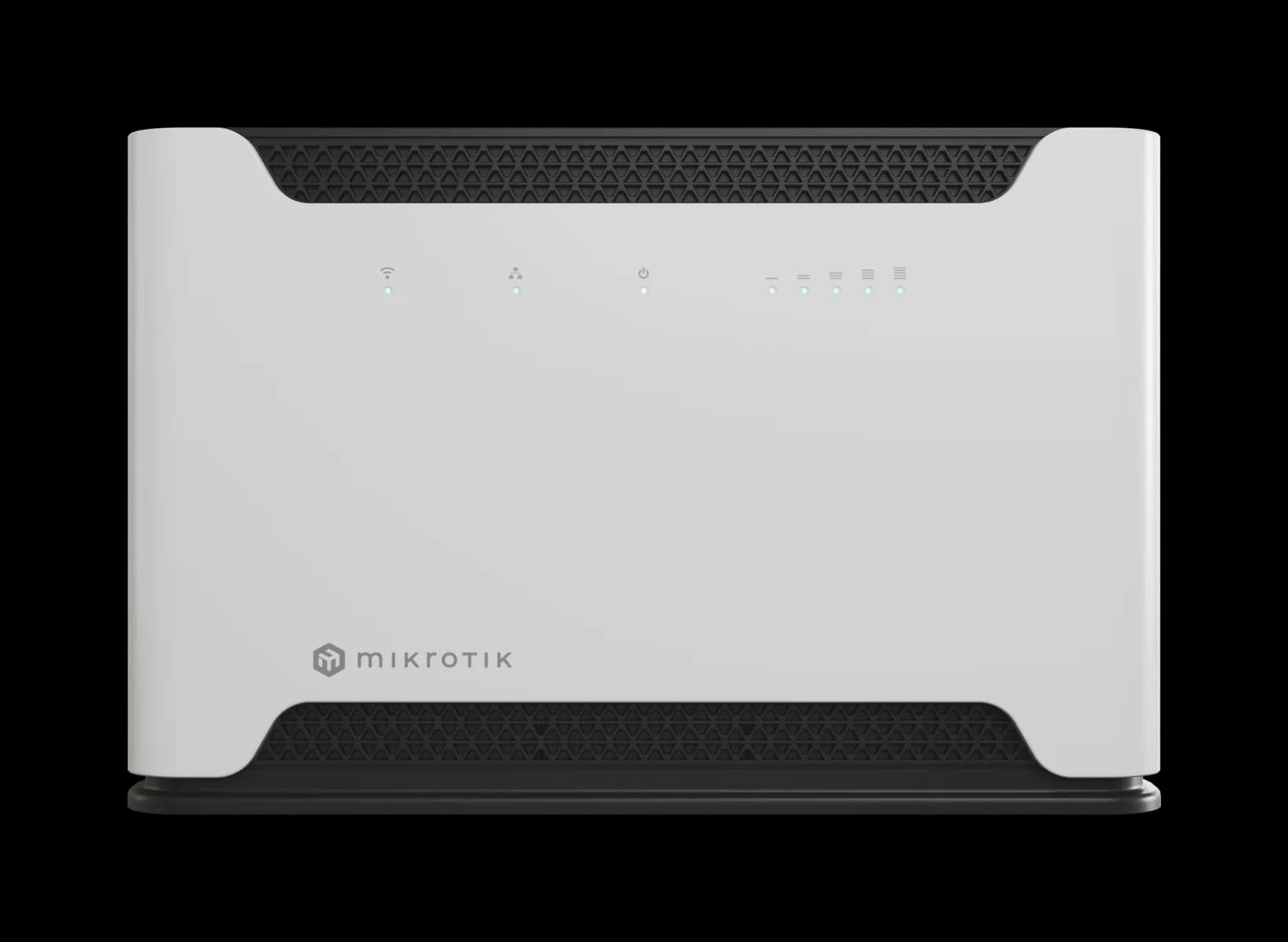

روتر MikroTik Chateau LTE12 (2025)

مشخصات

Brand

MikroTik

Model

Chateau LTE12 (2025)

Product code

D53G-5HacD2HnD-TC&EG120K-EA

Architecture

ARM 32bit

CPU

IPQ-4019

CPU core count

4

CPU threads count

4

CPU nominal frequency

448–896 MHz (auto)

Switch chip model

IPQ-4019

Operating system

RouterOS v7

RouterOS license

4

RAM

256 MB

Storage

32 MB FLASH

MTBF

Approximately 200,000 hours at 25°C

Ambient temperature

-20°C to 70°C

LTE category

Category 12; up to 600 Mbps downlink and 150 Mbps uplink

LTE downlink MIMO

4x4

LTE uplink MIMO

1x1

LTE FDD bands

1 (2100 MHz), 3 (1800 MHz), 5 (850 MHz), 7 (2600 MHz), 8 (900 MHz), 20 (800 MHz), 28 (700 MHz), 32 (1500 MHz)

LTE TDD bands

38 (2600 MHz), 40 (2300 MHz), 41 (2500 MHz)

3G category

R8; up to 42.2 Mbps downlink and 5.76 Mbps uplink

3G bands

1 (2100 MHz), 3 (1800 MHz), 5 (850 MHz), 8 (900 MHz)

TAC

86642205

2.4 GHz wireless data rate

Up to 300 Mbit/s

2.4 GHz wireless chains

2

2.4 GHz wireless standards

802.11b/g/n

2.4 GHz antenna gain

2 dBi

2.4 GHz wireless chipset

IPQ-4019

2.4 GHz Wi-Fi generation

Wi-Fi 4

5 GHz wireless data rate

Up to 867 Mbit/s

5 GHz wireless chains

2

5 GHz wireless standards

802.11a/n/ac

5 GHz antenna gain

4 dBi

5 GHz wireless chipset

IPQ-4019

5 GHz Wi-Fi generation

Wi-Fi 5

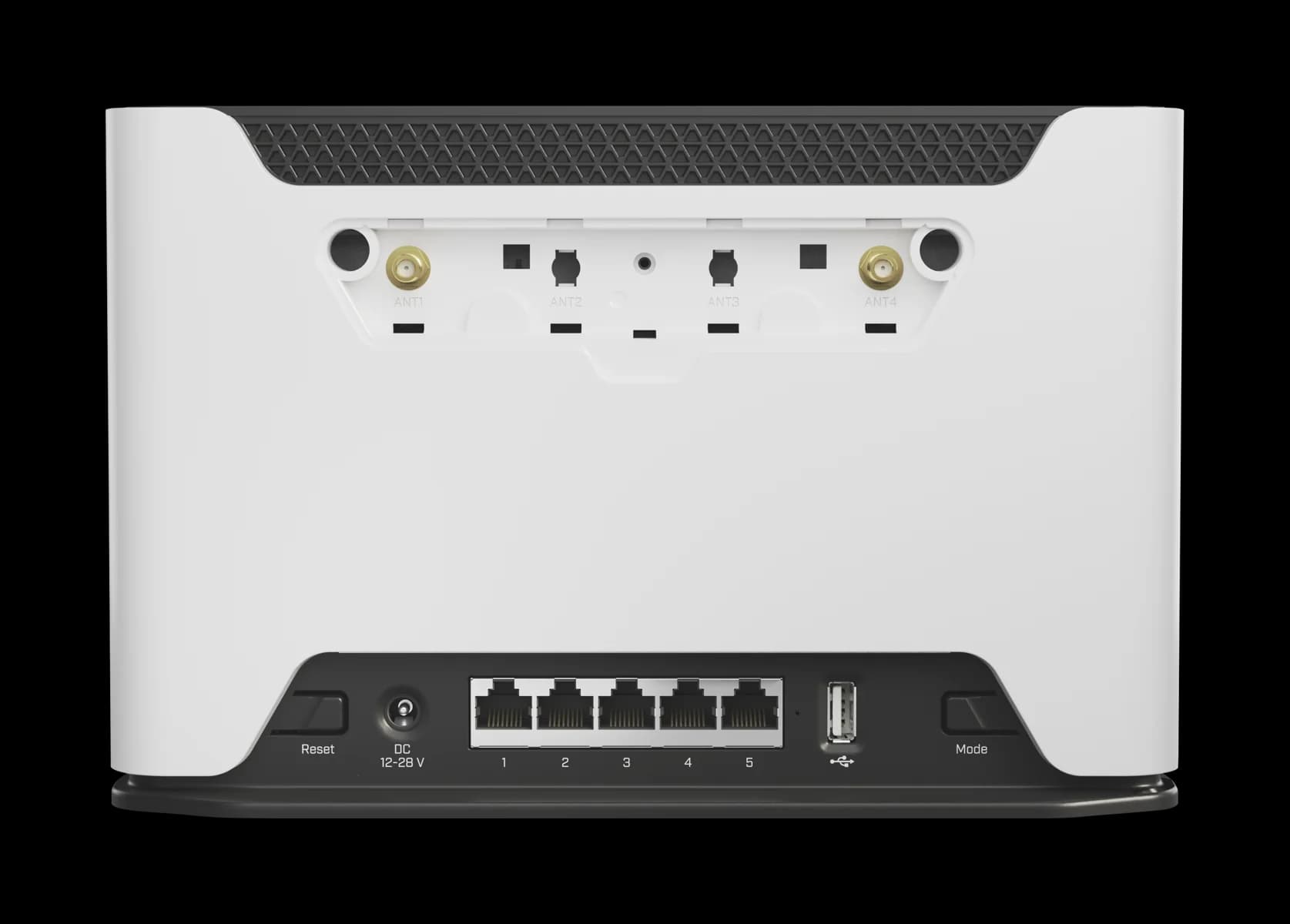

Ethernet ports

5 x 10/100/1000 Mbps

SIM slot

1 x Micro SIM (modem)

USB port

1 x USB Type-A

Maximum USB current

1 A

USB power reset

Yes

External LTE antenna connectors

SMA female ports

Mode button

Yes

DC inputs

1 x DC jack

DC input voltage

12–28 V

Maximum power consumption

24 W

Maximum power consumption without attachments

18 W

Cooling

Passive

Certifications

CE, EAC, RoHS

Ingress protection

IP20

Included accessories

24V 1.2A power adapter; 1.5 m UTP flat cable
