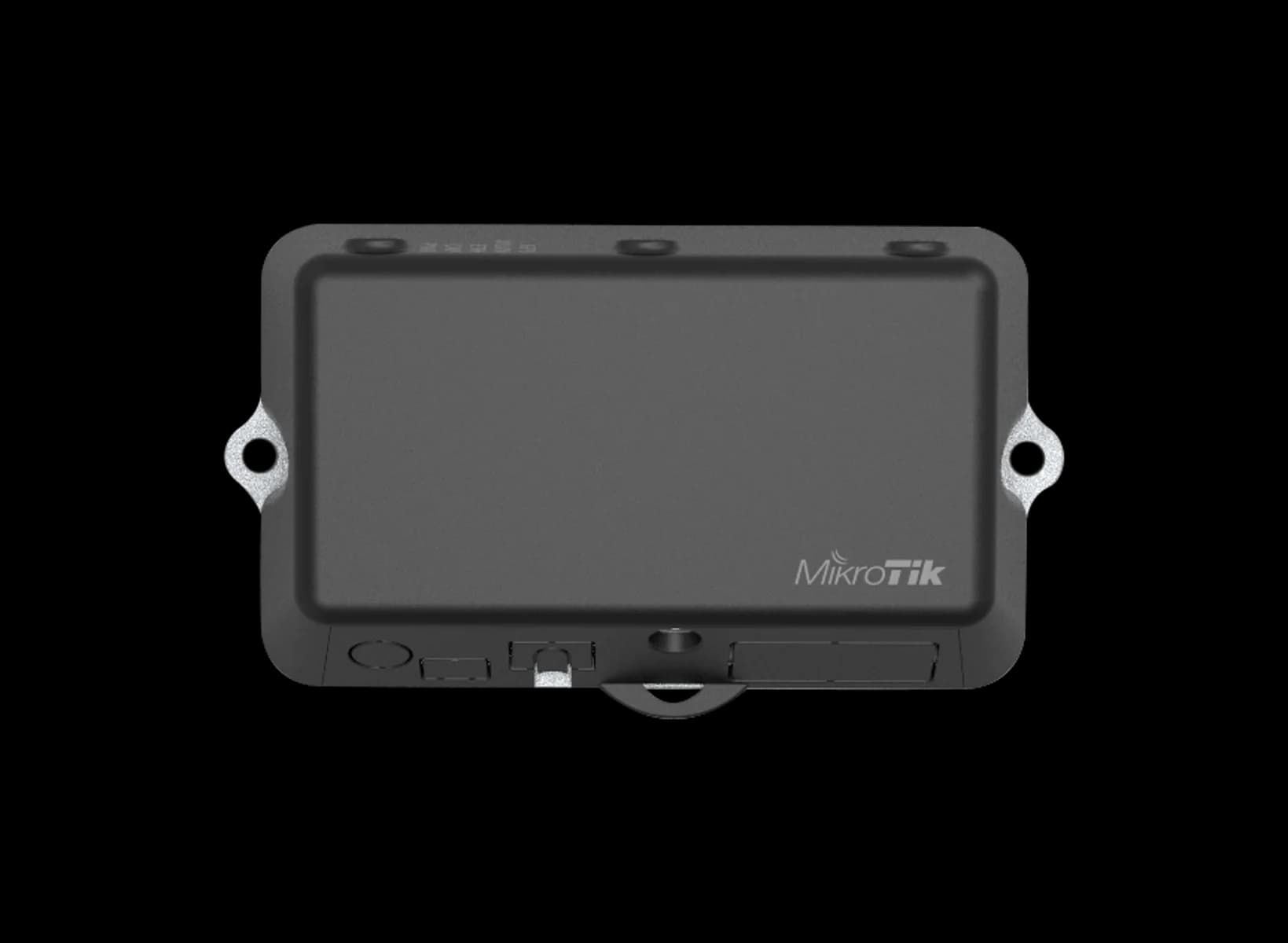

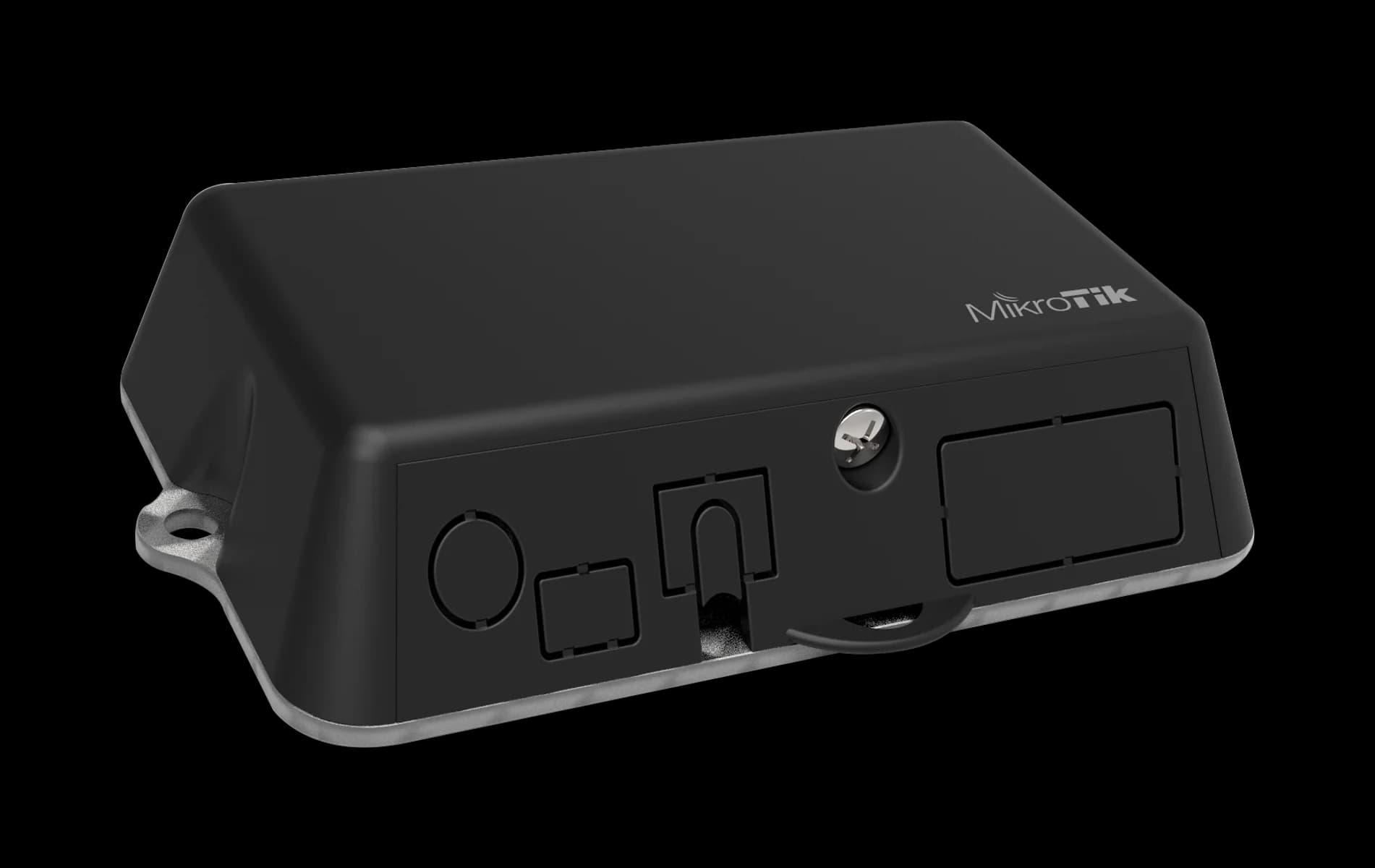

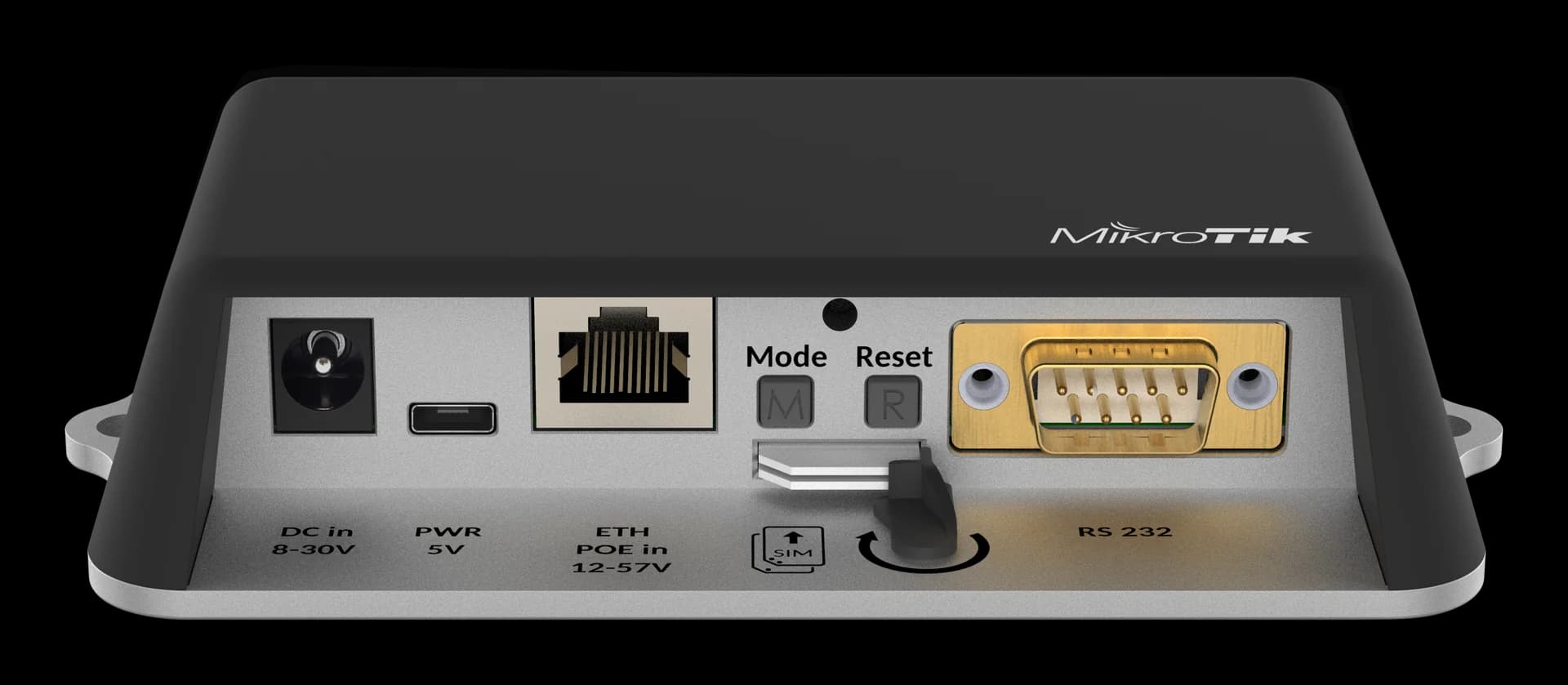

روتر MikroTik LtAP mini LTE kit

مشخصات

Brand

MikroTik

Model

LtAP mini LTE kit (2024)

Product code

RB912R-2nD-LTm&EC200A-EU

Architecture

MIPSBE

CPU

QCA9531

CPU core count

1

CPU nominal frequency

650 MHz

RAM

64 MB

Storage capacity

16 MB

Storage type

FLASH

Operating system

RouterOS v7

RouterOS license level

4

MTBF

Approximately 100,000 hours at 25°C

Dimensions

139 x 77 x 28.5 mm

Tested ambient temperature

-40°C to 70°C

Wireless frequency

2.4 GHz

Wireless standards

802.11b/g/n

Wireless generation

Wi-Fi 4

Maximum wireless data rate

300 Mbit/s

Wireless chains

2

Wireless antenna gain

1.5 dBi

Wireless chip

QCA9531

LTE modem

EC200A-EU

LTE category

Category 4; 150 Mbps downlink, 50 Mbps uplink

LTE FDD bands

1 (2100 MHz), 3 (1800 MHz), 5 (850 MHz), 7 (2600 MHz), 8 (900 MHz), 20 (800 MHz), 28 (700 MHz)

LTE TDD bands

38 (2600 MHz), 40 (2300 MHz), 41 (2500 MHz)

LTE MIMO

2x2 downlink; 1x1 uplink

LTE antenna

Two internal antennas with u.FL connectors; 3.5 dBi gain

3G category

R7; 21 Mbps downlink, 5.76 Mbps uplink

3G bands

1 (2100 MHz), 5 (850 MHz), 8 (900 MHz)

2G category

Class 12

2G bands

3 (1800 MHz), 8 (900 MHz)

Ethernet ports

1 x 10/100 Ethernet

SIM slots

2 x Mini SIM

Mini PCIe slots

1

Serial console

RS232

GNSS

GPS; MT3337V; uUFL RF connector; active antenna support

DC jack input voltage

8-30 V

PoE input

802.3af/at; 12-57 V

MicroUSB input voltage

5 V

Number of DC inputs

3 (DC jack, PoE-in, MicroUSB)

Maximum power consumption

8 W

Cooling

Passive

Ingress protection

IP54

Certifications

CE, E-MARK, EAC, RoHS

Included parts

External DC cable, K-55 screw kit, 24 V 0.38 A power adapter, PoE injector
