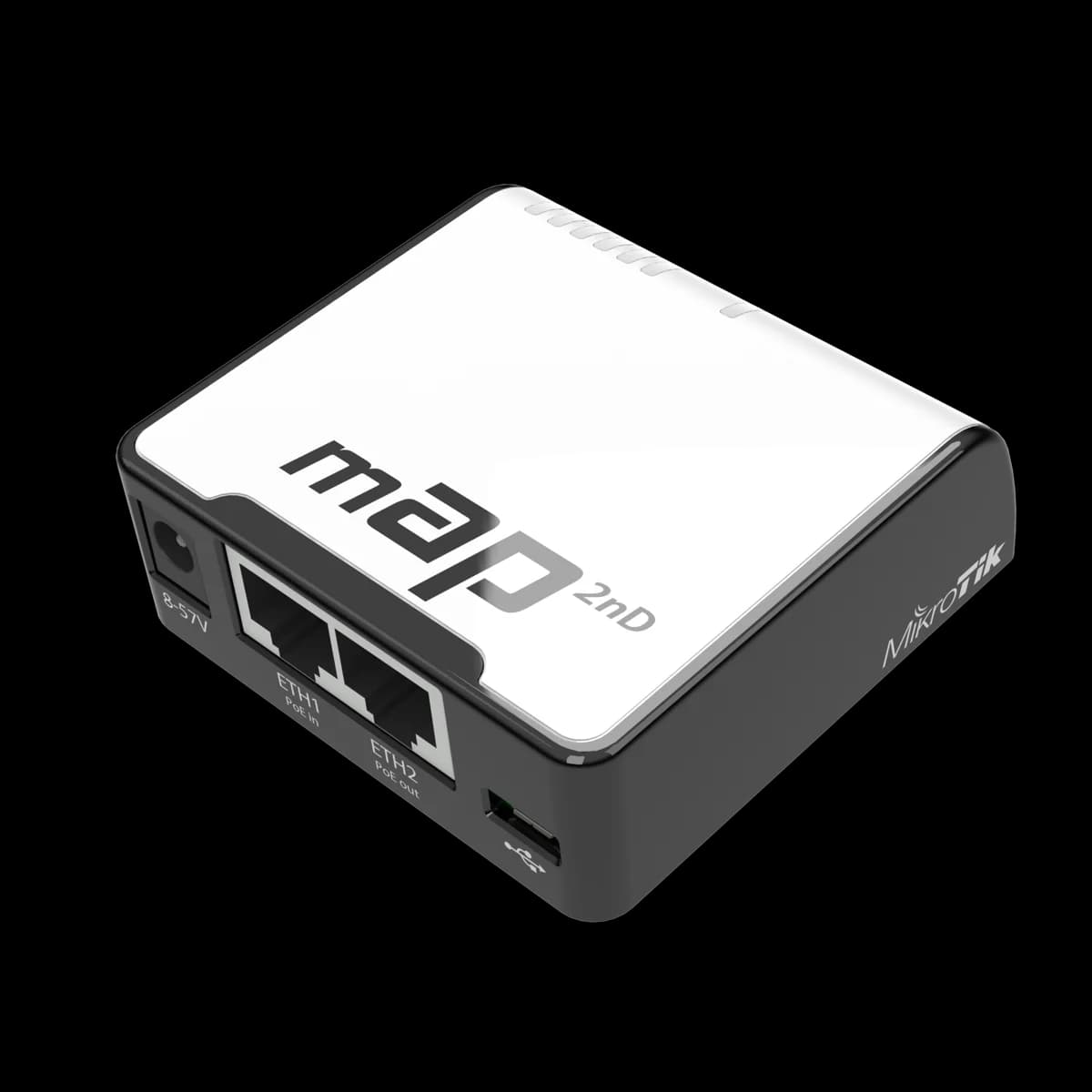

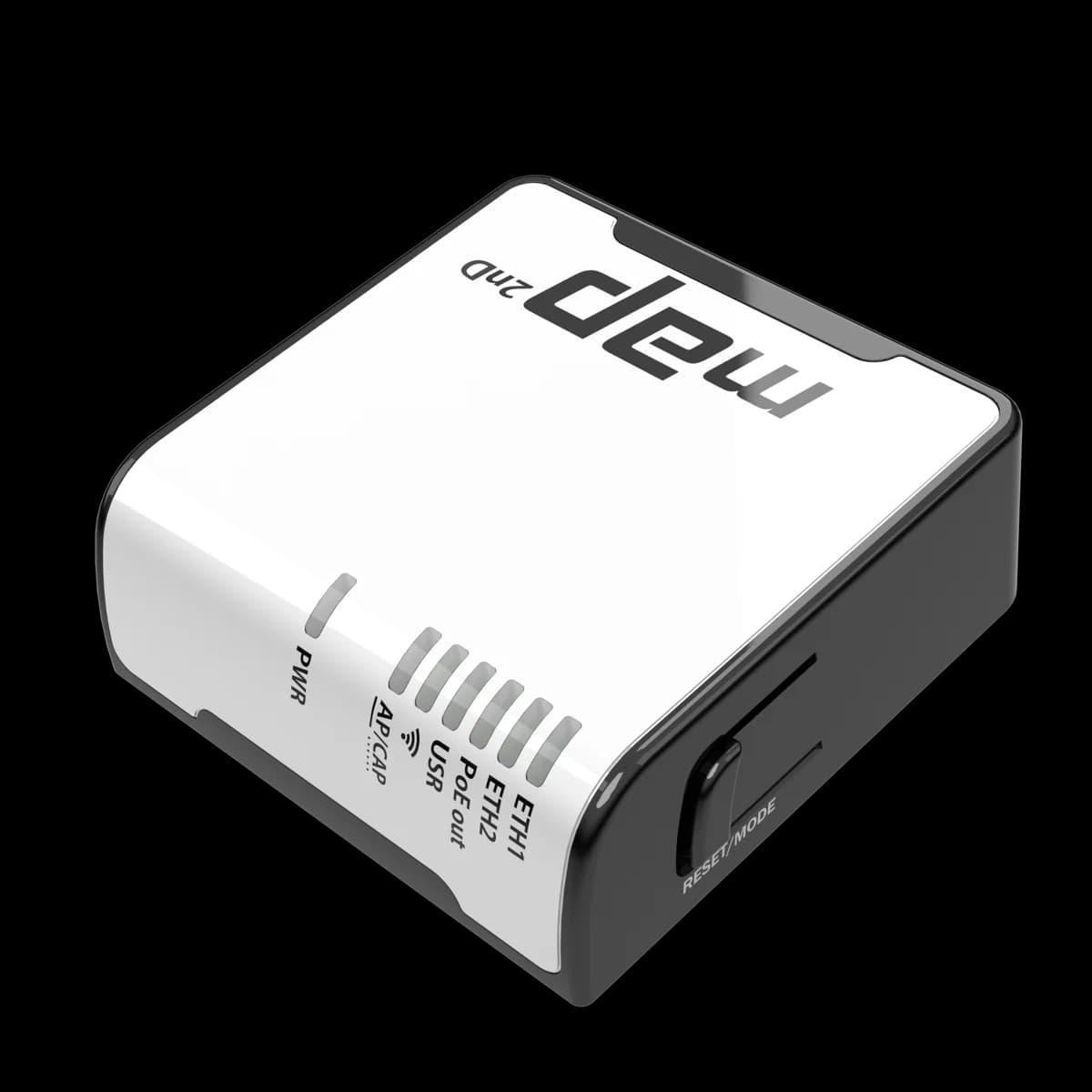

اکسس پوینت بی‌سیم میکروتیک MikroTik mAP مدل RBmAP2nD

مشخصات

Brand

MikroTik

Product code

RBmAP2nD

Architecture

MIPSBE

CPU

QCA9531

CPU core count

1

CPU nominal frequency

650 MHz

Switch chip model

QCA9531-BL3A-R

Dimensions

68x68x19mm

RouterOS license

4

Operating System

RouterOS

Size of RAM

64 MB

Storage size

16 MB

Storage type

FLASH

MTBF

Approximately 100'000 hours at 25C

Tested ambient temperature

-20°C to 70°C

Wireless 2.4 GHz Max data rate

300 Mbit/s

Wireless 2.4 GHz Number of chains

2

Wireless 2.4 GHz standards

802.11b/g/n

Antenna gain dBi for 2.4 GHz

1.2

Wireless 2.4 GHz chip model

QCA9531

Wireless 2.4 GHz generation

Wi-Fi 4

10/100 Ethernet ports

2

Number of USB ports

1

USB Power Reset

Yes

USB slot type

microUSB type AB

Max USB current (A)

1

MicroUSB input Voltage

5 V

Number of DC inputs

3 (DC jack, PoE-IN, MicroUSB)

DC jack input Voltage

8-57 V

Max power consumption

5 W

PoE in

802.3af/at

Cooling type

Passive

PoE in input Voltage

12-57 V

PoE-out ports

Ether2

PoE out

Passive PoE

Low voltage PoE-Out current limit

0.5 A

Max total out (A)

0.5 A

Certification

FCC, IC

PCB temperature monitor

Yes

Voltage Monitor

Yes

Included parts

Mounting kit (K-33); 24V 0.8A power adapter; USB OTG cable

2.4 GHz 1MBit/s transmit / receive sensitivity

22 dBm / -96 dBm

2.4 GHz 11MBit/s transmit / receive sensitivity

22 dBm / -89 dBm

2.4 GHz 6MBit/s transmit / receive sensitivity

20 dBm / -93 dBm

2.4 GHz 54MBit/s transmit / receive sensitivity

18 dBm / -74 dBm

2.4 GHz MCS0 transmit / receive sensitivity

20 dBm / -93 dBm

2.4 GHz MCS7 transmit / receive sensitivity

16 dBm / -71 dBm
