- Brand
- MikroTik
- Model

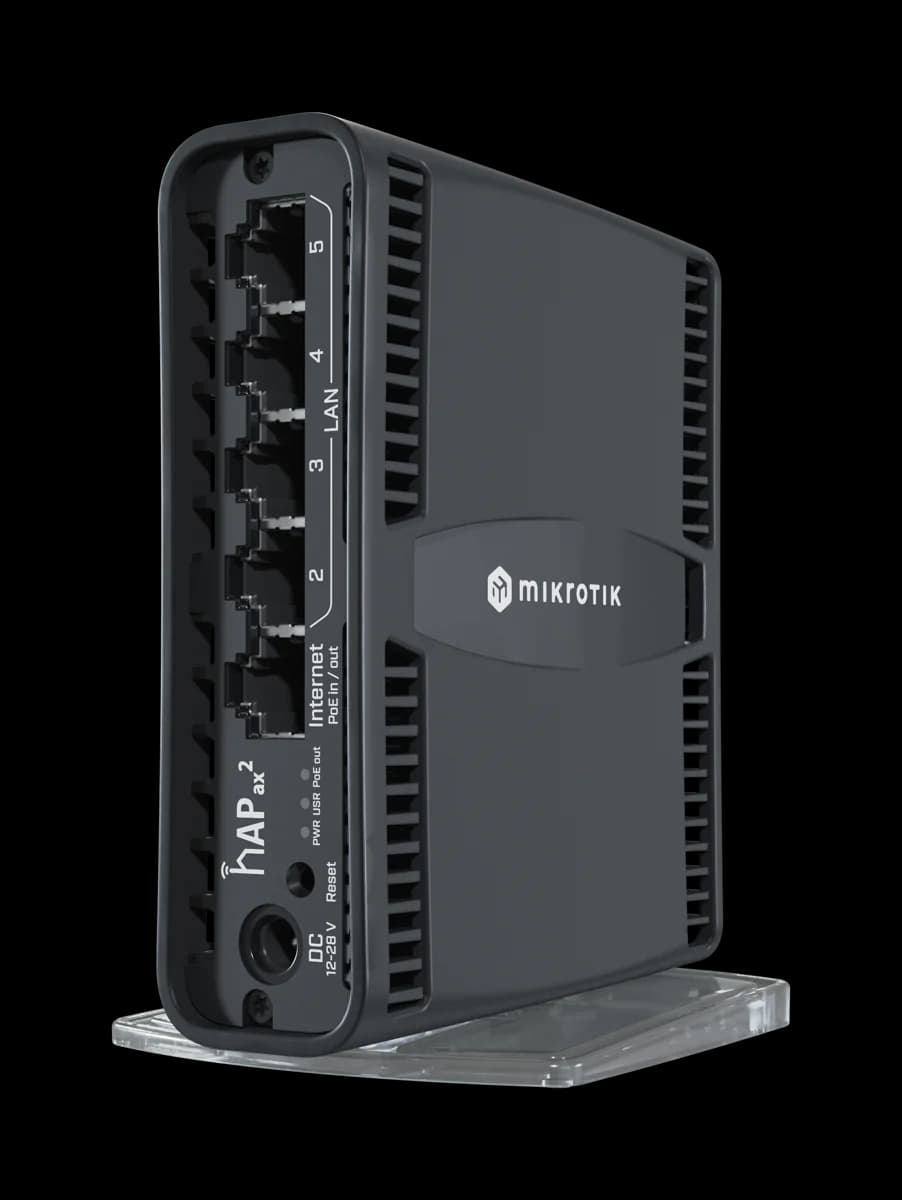

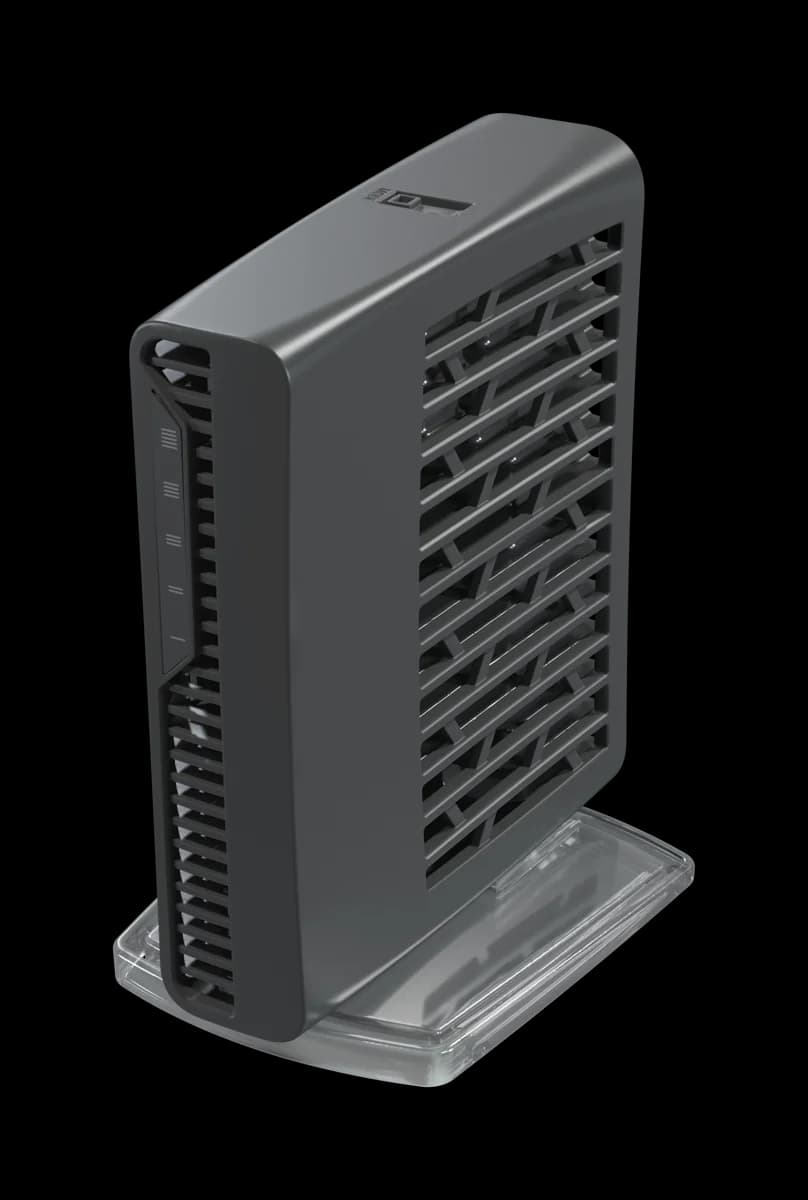

- hAP ax²
- Product code
- C52iG-5HaxD2HaxD-TC
- Architecture
- ARM 64bit
- CPU
- IPQ-6010
- CPU core count
- 4
- CPU nominal frequency
- 864 MHz
- CPU Threads count
- 4
- Switch chip model
- IPQ-6010
- RouterOS license
- 4
- Operating System
- RouterOS v7
- Size of RAM
- 1 GB
- Storage size
- 128 MB
- Storage type
- NAND
- MTBF
- Approximately 100'000 hours at 25°C
- Tested ambient temperature
- -40°C to 50°C
- Dimensions
- 120 x 101 x 37 mm
- Wireless 2.4 GHz Max data rate
- 574 Mbit/s
- Wireless 2.4 GHz Number of chains
- 2
- Wireless 2.4 GHz standards
- 802.11b/g/n/ax
- Antenna gain dBi for 2.4 GHz
- 4
- Wireless 2.4 GHz chip model
- QCN-5022
- Wireless 2.4 GHz generation
- Wi-Fi 6
- Wireless 5 GHz Max data rate
- 1200 Mbit/s
- Wireless 5 GHz Number of chains
- 2
- Wireless 5 GHz standards
- 802.11a/n/ac/ax
- Antenna gain dBi for 5 GHz
- 4.5
- Wireless 5 GHz chip model
- QCN-5052
- Wireless 5 GHz generation
- Wi-Fi 6
- WiFi speed
- AX1800
- 10/100/1000 Ethernet ports
- 5
- Number of 1G Ethernet ports with PoE-out
- 1
- Number of DC inputs
- 2 (DC jack, PoE-IN)
- DC jack input Voltage
- 12-28 V
- Max power consumption
- 27 W
- Max power consumption without attachments
- 12 W
- PoE in
- Passive PoE
- Cooling type
- Passive
- PoE in input Voltage
- 18-28 V
- PoE-out ports
- Ether 1
- PoE out
- Passive PoE
- Low voltage PoE-Out current limit
- 600 mA
- Max total out (A)
- 0.6 A
- Total output current
- 0.6 A
- Total output power
- 16.8 W
- Certification
- CE, FCC, IC, EAC, ROHS
- IP
- 20
- CPU temperature monitor
- Yes
- Mode button
- Yes
- Power adapter nominal voltage
- 24 V
- Power adapter nominal current
- 1.2 A
- Included parts
- hAP case base; K-47 wall mount set; 24V 1.2A power supply (straight plug)
- Wireless 2.4 GHz 1MBit/s Tx / Rx sensitivity
- 27 dBm / -100 dBm
- Wireless 2.4 GHz 11MBit/s Tx / Rx sensitivity
- 27 dBm / -94 dBm
- Wireless 2.4 GHz 6MBit/s Tx / Rx sensitivity
- 27 dBm / -96 dBm
- Wireless 2.4 GHz 54MBit/s Tx / Rx sensitivity
- 25 dBm / -80 dBm
- Wireless 2.4 GHz MCS0 Tx / Rx sensitivity
- 27 dBm / -96 dBm
- Wireless 2.4 GHz MCS7 Tx / Rx sensitivity
- 24 dBm / -75 dBm
- Wireless 2.4 GHz MCS9 Tx / Rx sensitivity
- 22 dBm / -70 dBm
- Wireless 2.4 GHz MCS11 Tx / Rx sensitivity
- 20 dBm / -67 dBm
- Wireless 5 GHz 6MBit/s Tx / Rx sensitivity
- 26 dBm / -96 dBm
- Wireless 5 GHz 54MBit/s Tx / Rx sensitivity
- 23 dBm / -80 dBm
- Wireless 5 GHz MCS0 Tx / Rx sensitivity
- 26 dBm / -96 dBm
- Wireless 5 GHz MCS7 Tx / Rx sensitivity
- 22 dBm / -75 dBm
- Wireless 5 GHz MCS9 Tx / Rx sensitivity
- 20 dBm / -70 dBm
- Wireless 5 GHz MCS11 Tx / Rx sensitivity
- 18 dBm / -67 dBm
- Ethernet test: Bridging, none (fast path)
- 1518 B: 216.6 kpps / 2630.4 Mbps; 512 B: 591.5 kpps / 2422.8 Mbps; 64 B: 1366.2 kpps / 743.2 Mbps
- Ethernet test: Bridging, 25 bridge filter rules
- 1518 B: 216 kpps / 2622.7 Mbps; 512 B: 342.5 kpps / 1402.7 Mbps; 64 B: 347 kpps / 188.8 Mbps
- Ethernet test: Routing, none (fast path)
- 1518 B: 216.6 kpps / 2630.4 Mbps; 512 B: 590.9 kpps / 2420.3 Mbps; 64 B: 1212.6 kpps / 659.7 Mbps
- Ethernet test: Routing, 25 simple queues
- 1518 B: 215.7 kpps / 2620 Mbps; 512 B: 327.6 kpps / 1341.8 Mbps; 64 B: 350.3 kpps / 190.6 Mbps
- Ethernet test: Routing, 25 ip filter rules
- 1518 B: 216.2 kpps / 2625.1 Mbps; 512 B: 222.9 kpps / 912.9 Mbps; 64 B: 225.1 kpps / 122.4 Mbps
- IPsec test: Single tunnel, AES-128-CBC + SHA1
- 1400 B: 78.4 kpps / 878.1 Mbps; 512 B: 91.9 kpps / 376.4 Mbps; 64 B: 93.6 kpps / 47.9 Mbps
- IPsec test: 256 tunnels, AES-128-CBC + SHA1
- 1400 B: 50.1 kpps / 561.1 Mbps; 512 B: 55.5 kpps / 227.3 Mbps; 64 B: 58.6 kpps / 30 Mbps
- IPsec test: 256 tunnels, AES-128-CBC + SHA256
- 1400 B: 50 kpps / 560 Mbps; 512 B: 55.4 kpps / 226.9 Mbps; 64 B: 58.6 kpps / 30 Mbps
- IPsec test: 256 tunnels, AES-256-CBC + SHA1
- 1400 B: 49.4 kpps / 553.3 Mbps; 512 B: 54.8 kpps / 224.5 Mbps; 64 B: 58.6 kpps / 30 Mbps
- IPsec test: 256 tunnels, AES-256-CBC + SHA256
- 1400 B: 49.4 kpps / 553.3 Mbps; 512 B: 55 kpps / 225.3 Mbps; 64 B: 58.6 kpps / 30 Mbps
