روتر وایرلس داخلی MikroTik hAP be³ Media مدل MA53UG+HbeH

مشخصات

Brand

MikroTik

Model

hAP be³ Media

Product code

MA53UG+HbeH

Architecture

ARM 64bit

CPU

IPQ-5322

CPU core count

4

CPU nominal frequency

Up to 1.5 GHz (auto)

CPU Threads count

4

Switch chip model

QCA8386

RouterOS license

6

Operating System

RouterOS v7

Size of RAM

2 GB

RAM type

DDR4

Storage size

512 MB

Storage type

NAND

MTBF

Approximately 200'000 hours at 25C

Tested ambient temperature

-30°C to 50°C

Wireless 2.4 GHz Max data rate

688 Mbit/s

Wireless 2.4 GHz Number of chains

2

Wireless 2.4 GHz standards

802.11b/g/n/ax/be

Antenna gain dBi for 2.4 GHz

4

Wireless 2.4 GHz chip model

IPQ-5322

Wireless 2.4 GHz generation

Wi-Fi 7

Wireless 5 GHz Max data rate

2882 Mbit/s

Wireless 5 GHz Number of chains

2

Wireless 5 GHz standards

802.11a/n/ac/ax/be

Antenna gain dBi for 5 GHz

7.5

Wireless 5 GHz chip model

QCM-8083

Wireless 5 GHz generation

Wi-Fi 7

WiFi speed

BE9300

Wireless 6 GHz Max data rate

5764 Mbit/s

Wireless 6 GHz Number of chains

2

Wireless 6 GHz standards

802.11ax/be

Antenna gain dBi for 6 GHz

8

Wireless 6 GHz chip model

QXM-8086

Wireless 6 GHz generation

Wi-Fi 7

Wi-Fi 7 Multi-Link Operation (MLO)

Supported (TR-MLMR in AP mode)

Number of 2.5G Ethernet ports

5 (1 port with PoE-in)

Number of USB ports

3 (1 USB Type C + 2x USB 3.0 Type A)

USB slot type

USB 3.0 type A

Max USB current (A)

1.5

Memory card

microSD

Number of DC inputs

2 (DC jack, PoE-IN)

DC jack input Voltage

24-57 V

Max power consumption

29 W

Max power consumption without attachments

20 W

PoE in

802.3af/at

Cooling type

Passive

PoE in input Voltage

24-57 V

Certification

CE, FCC, IC, EAC, ROHS

IP

20

CPU temperature monitor

Yes

Bluetooth version

5.4

Thread radio

Built-in

Dimensions

187 x 142 x 95 mm

Included parts

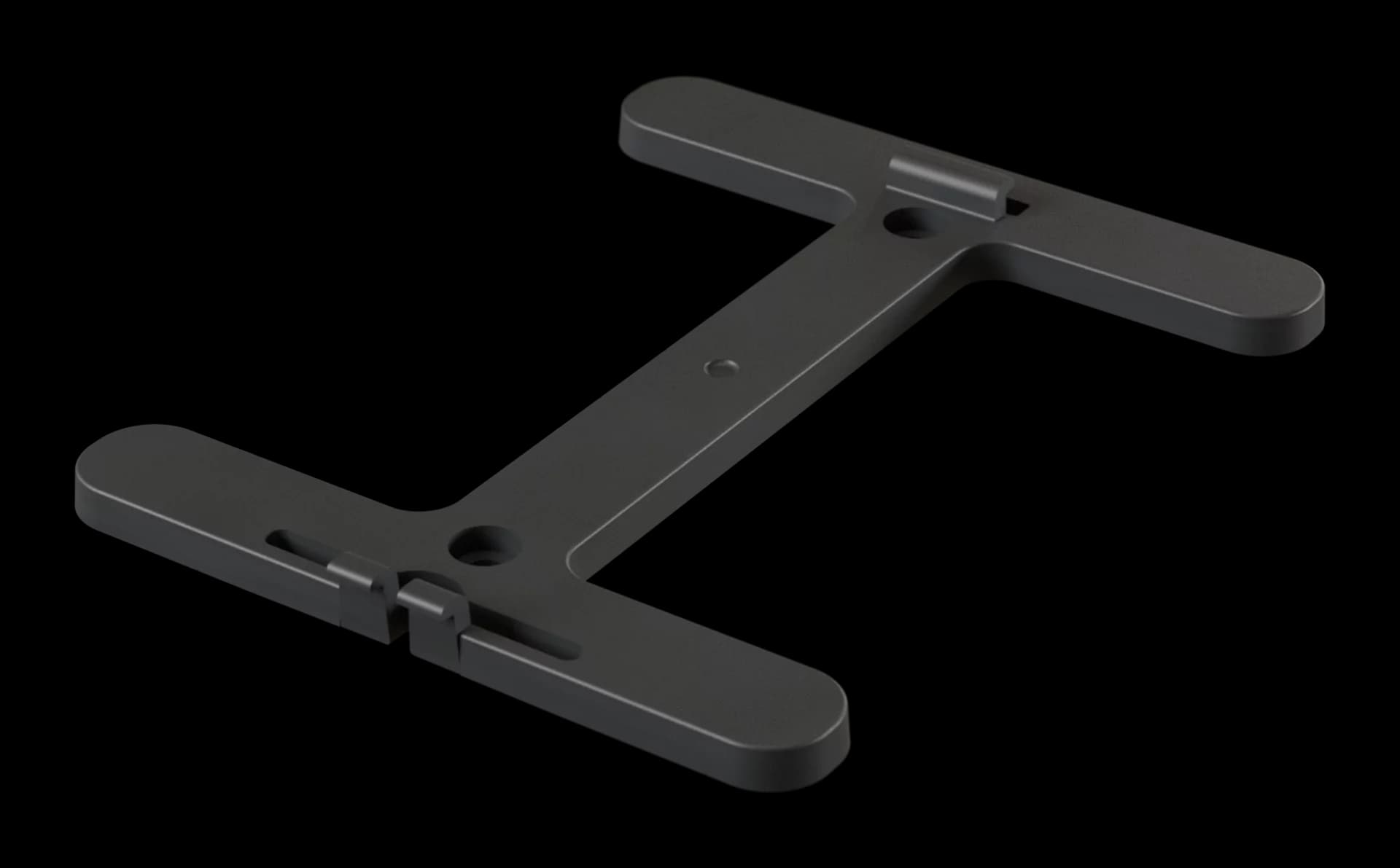

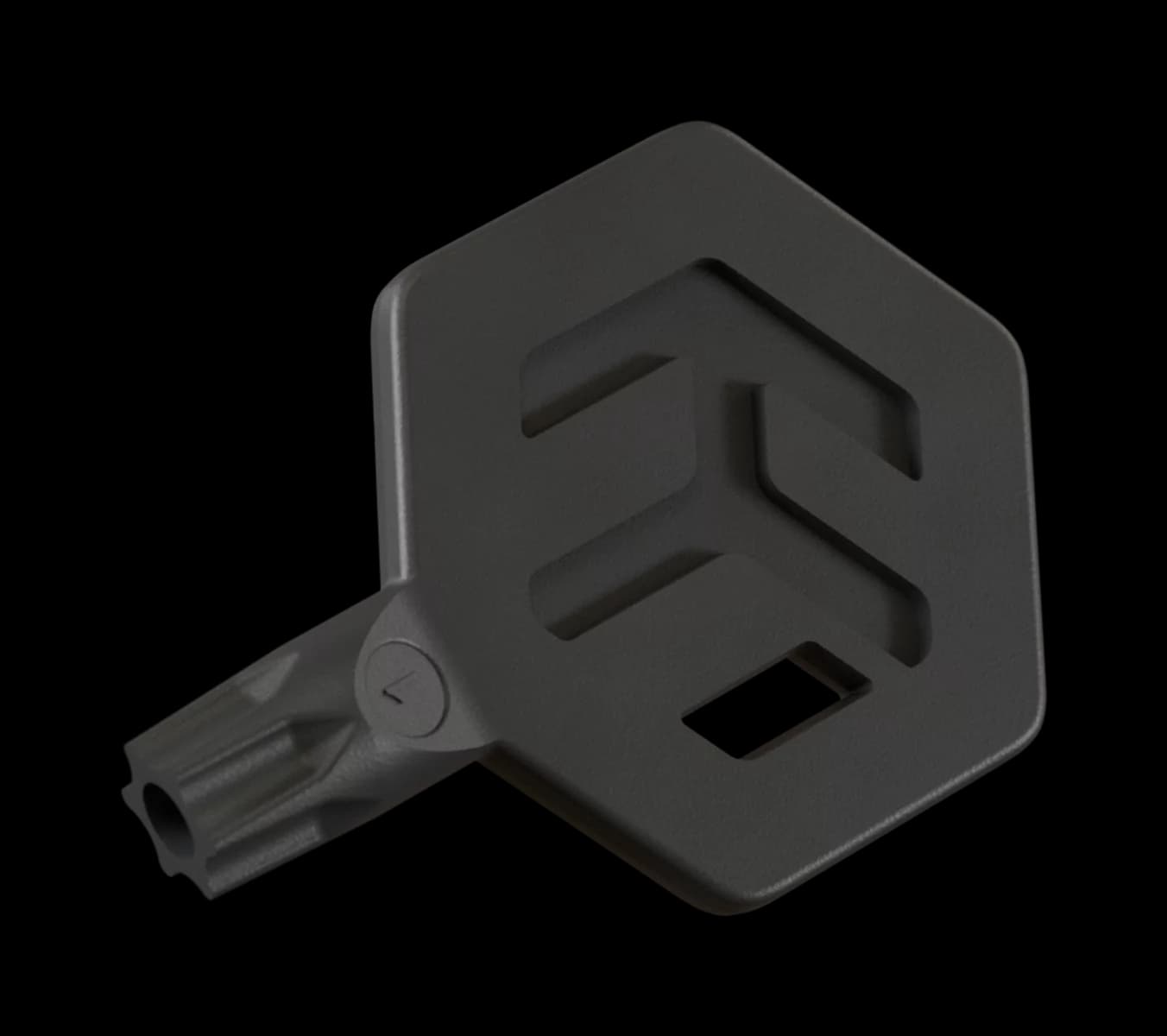

MT Torx (T30 PIN); hAP be³ Case Base; 24V 1.5A power adapter
