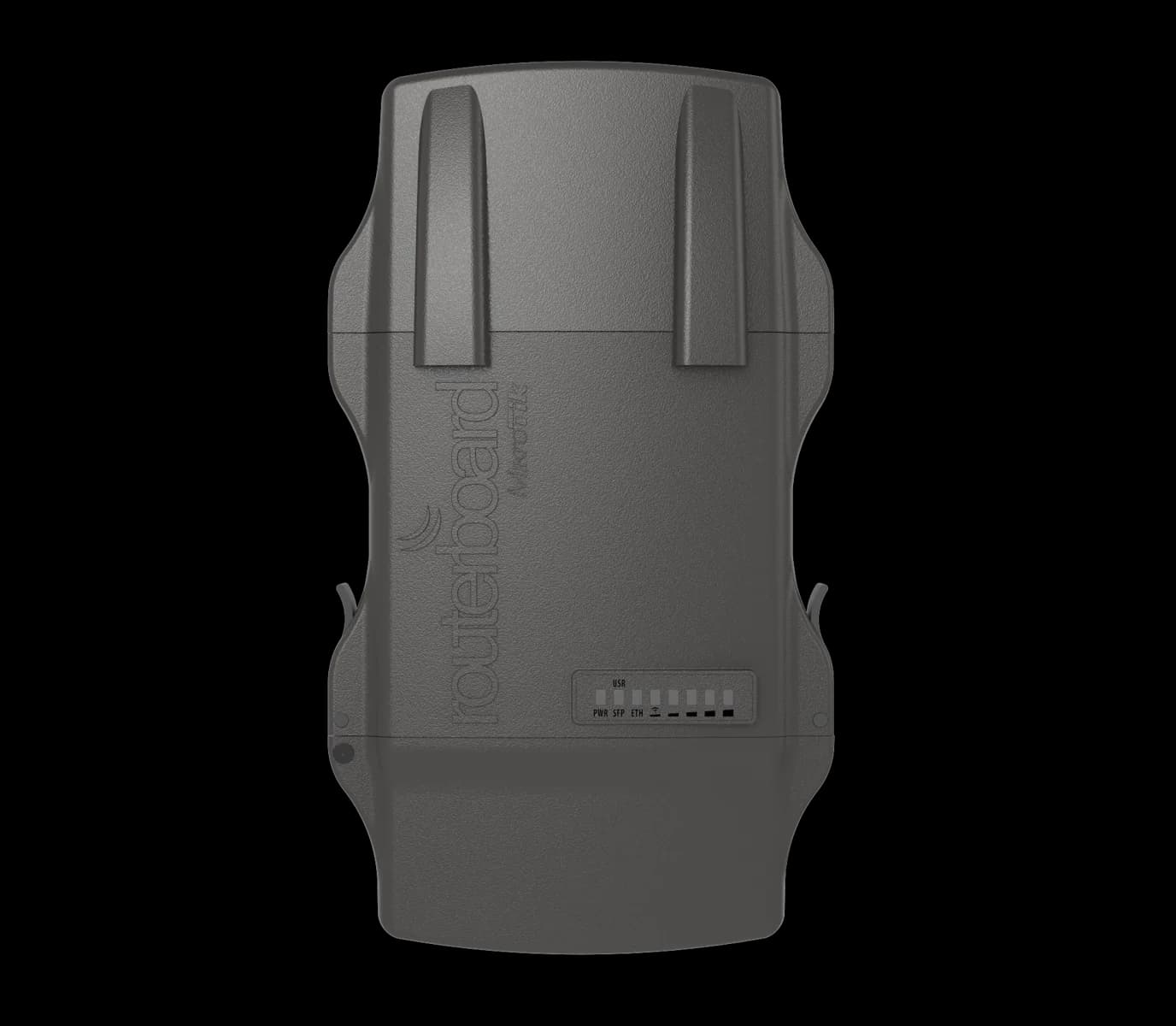

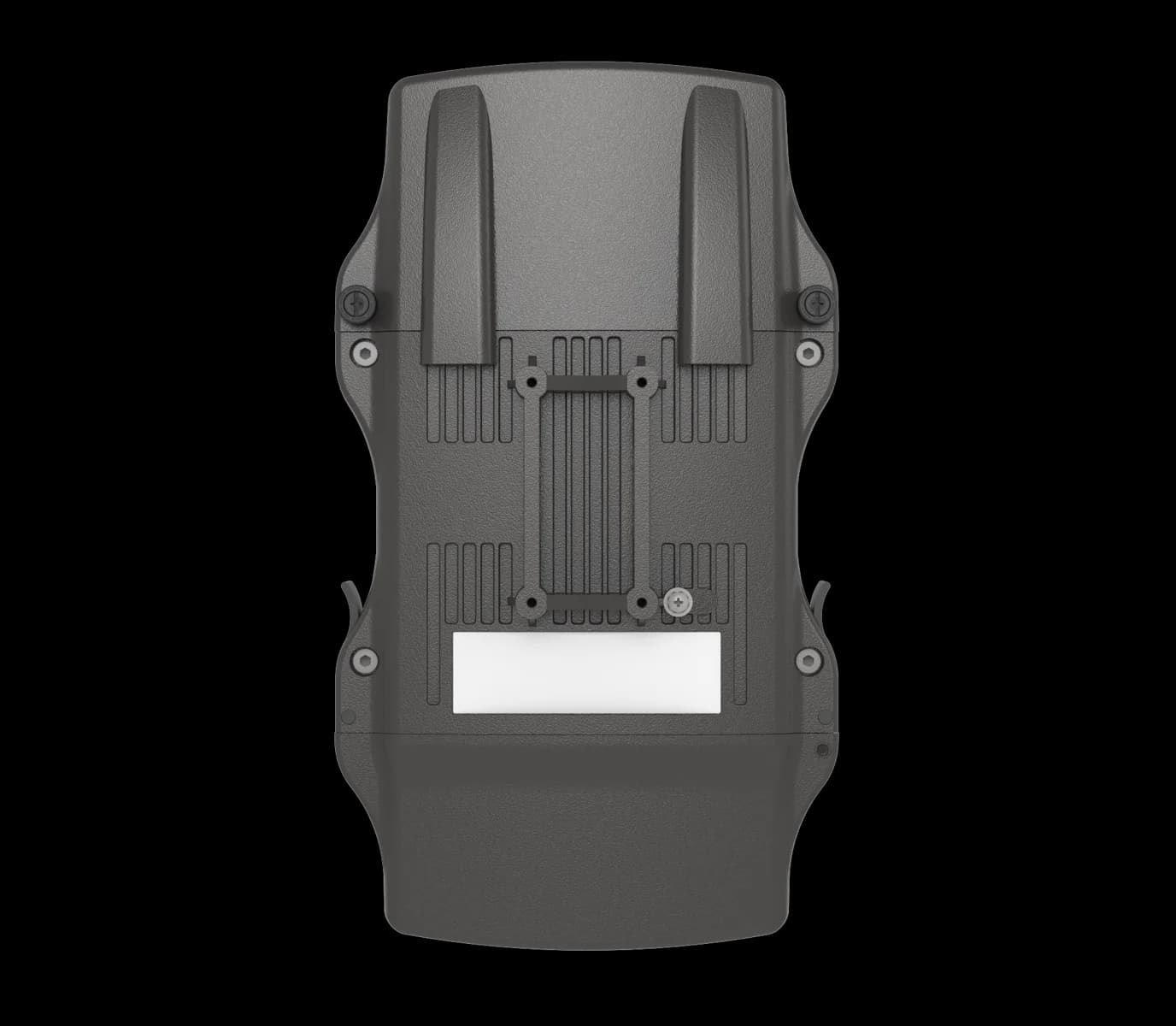

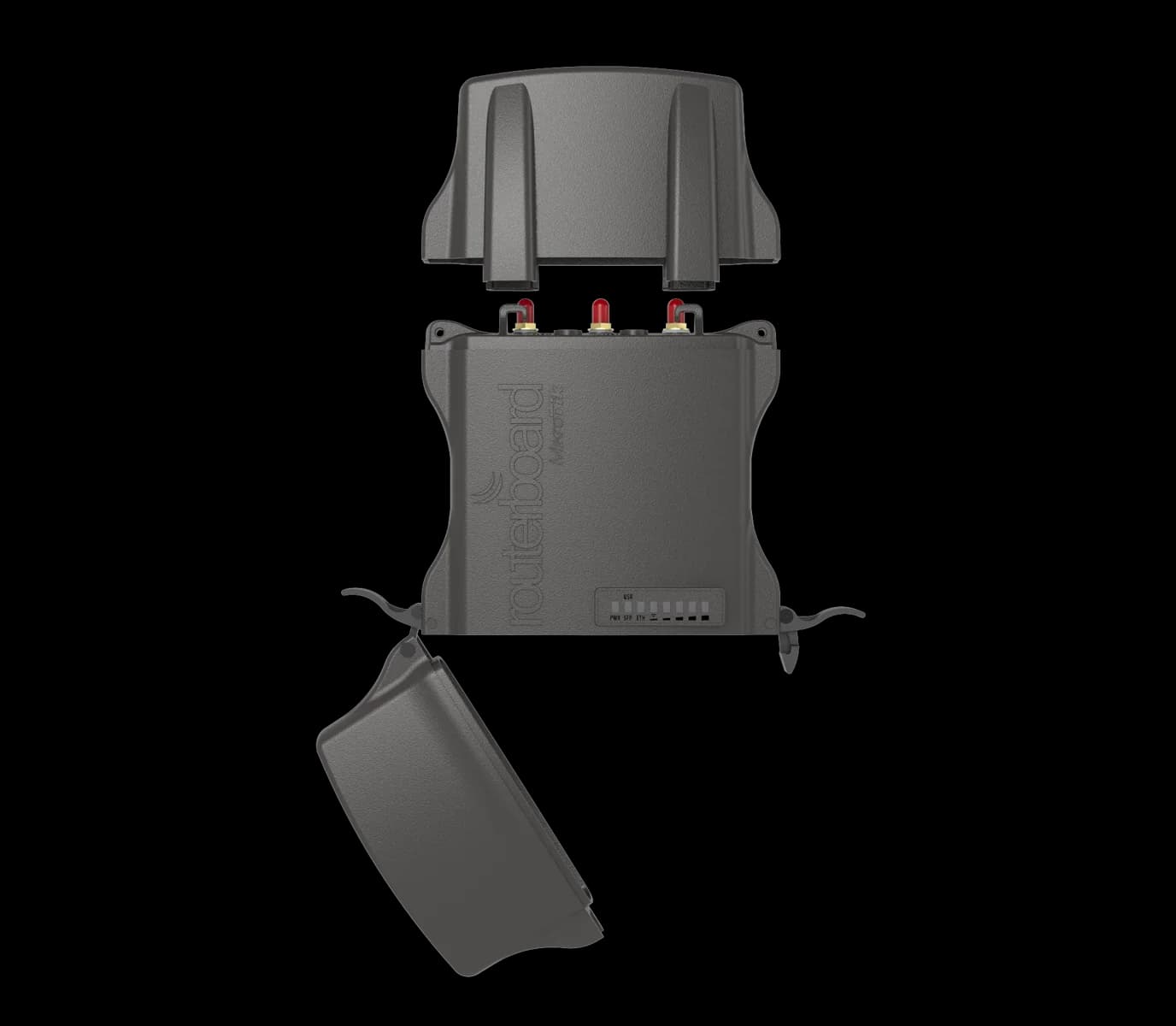

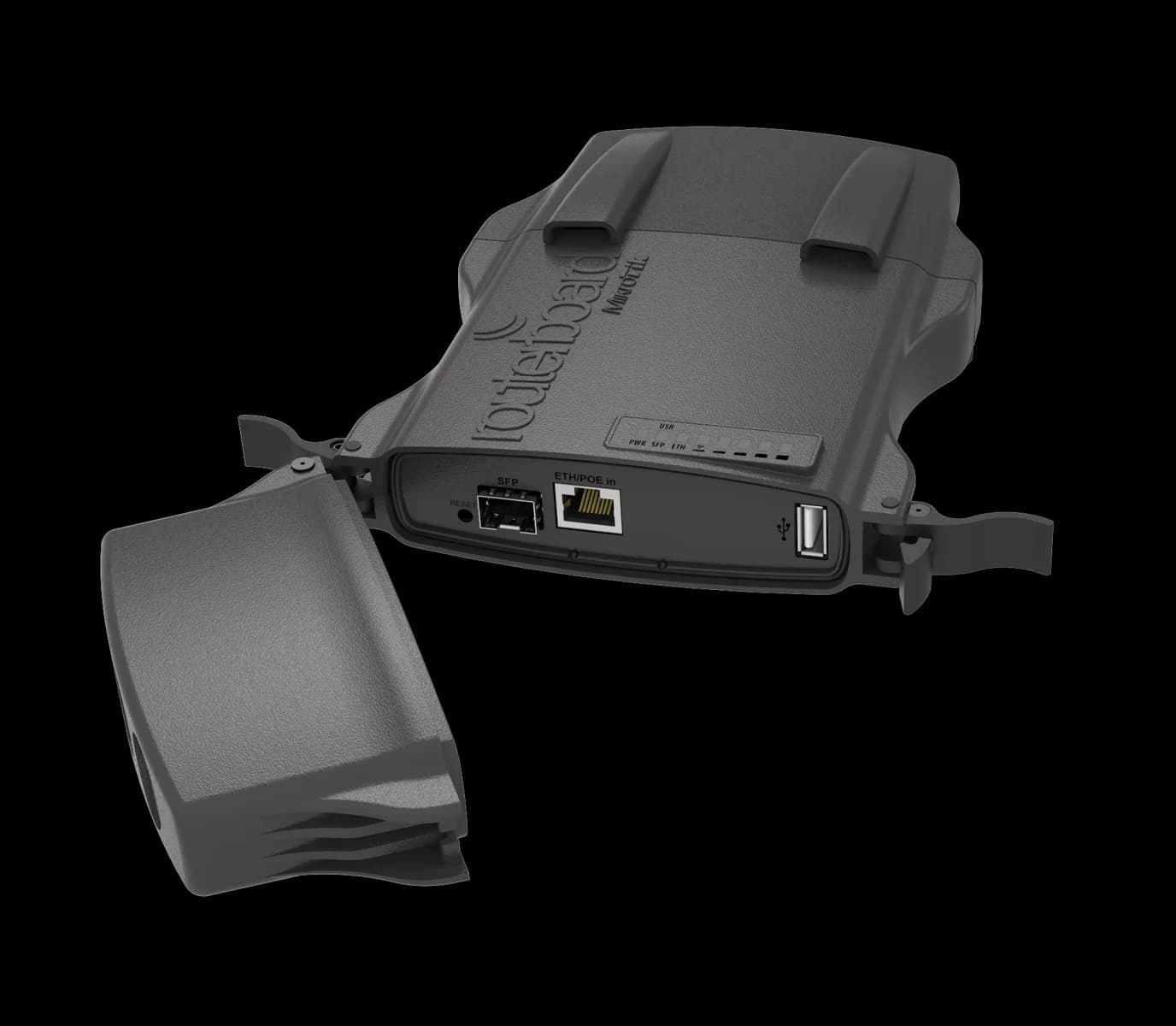

سیستم وایرلس فضای باز MikroTik NetMetal 5 مدل RB922UAGS-5HPacD-NM

مشخصات

Brand

MikroTik

Model

NetMetal 5

Product code

RB922UAGS-5HPacD-NM

Device type

Outdoor wireless AP / backbone / CPE

Wireless band

5 GHz

Wireless standards

802.11a/n/ac

Wireless generation

Wi-Fi 5

Wireless chipset

QCA9882

Wireless chains

2 (dual-chain 2x2)

Maximum 5 GHz data rate

867 Mbit/s

Antenna connectors

2 × RP-SMA Female (outside thread); external antennas

International model frequency range

5150–5875 MHz (subject to local regulations)

Architecture

MIPSBE

CPU

QCA9557

CPU core count

1

CPU nominal frequency

720 MHz

RAM

128 MB

Storage

128 MB NAND

Operating system

RouterOS

RouterOS license

Level 4

Gigabit Ethernet ports

1 × 10/100/1000

SFP ports

1

SFP DDMI

Yes

MiniPCI-e slots

1

SIM slots

1 × Mini SIM (for modem)

USB ports

1 × USB Type-A

Maximum USB current

1 A

USB power reset

Yes

DC inputs

1 (PoE-IN)

PoE input

Passive PoE, 8–30 V

Maximum power consumption

19 W

Cooling

Passive

Enclosure material

Aluminum

Ingress protection

IP54

PCB dimensions

143 × 247 × 48 mm

Tested ambient temperature

-40 °C to +70 °C

MTBF

Approximately 200,000 hours at 25 °C

PCB temperature monitor

Yes

Voltage monitor

Yes

Beeper

Yes

Certifications

FCC, IC

Included accessories

24 V 1.2 A power adapter; K-25 screw kit; Gigabit PoE injector; metal ring; DIN mount (K-27)

5 GHz transmit power at 6 Mbit/s

31 dBm

5 GHz receive sensitivity at 6 Mbit/s

-96 dBm

5 GHz transmit power at MCS9

22 dBm

5 GHz receive sensitivity at MCS9

-72 dBm
