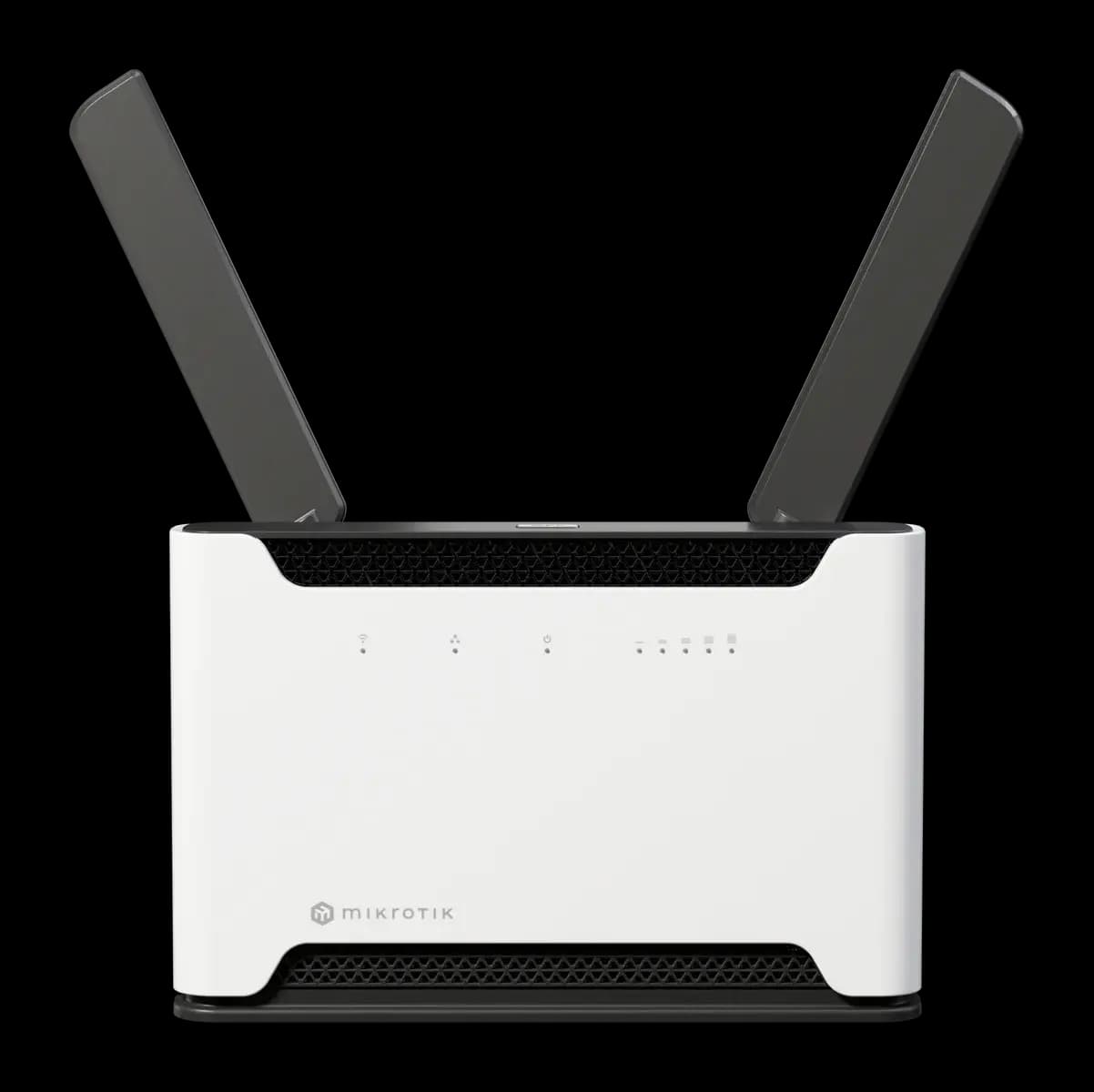

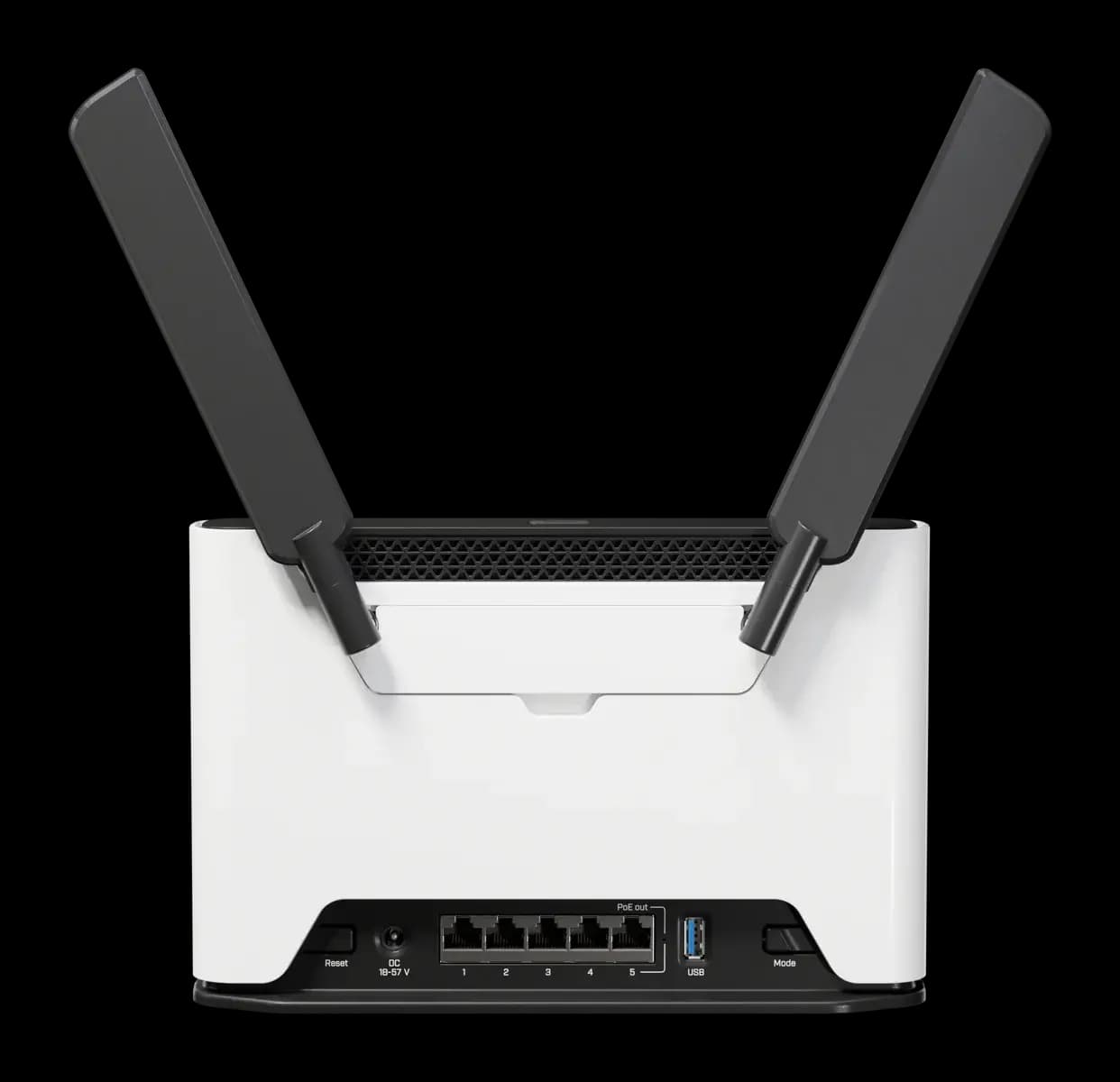

روتر وایرلس MikroTik Chateau PRO ax

مشخصات

Brand

MikroTik

Product code

H53UiG-5HaxQ2HaxQ

Architecture

ARM 64bit

CPU

IPQ-8072A

CPU core count

4

CPU nominal frequency

2208 MHz

CPU Threads count

4

Switch chip model

IPQ-8072

RouterOS license

6

Operating System

RouterOS v7

Size of RAM

1 GB

Storage size

128 MB

Storage type

NAND

MTBF

Approximately 200'000 hours at 25°C

Tested ambient temperature

-40°C to 70°C

Wireless 2.4 GHz Max data rate

1148 Mbit/s

Wireless 2.4 GHz Number of chains

4

Wireless 2.4 GHz standards

802.11b/g/n/ax

Antenna gain dBi for 2.4 GHz

5

Wireless 2.4 GHz chip model

QCN-5024

Wireless 2.4 GHz generation

Wi-Fi 6

Wireless 5 GHz Max data rate

2400 Mbit/s

Wireless 5 GHz Number of chains

4

Wireless 5 GHz standards

802.11a/n/ac/ax

Antenna gain dBi for 5 GHz

6

Wireless 5 GHz chip model

QCN-5054

Wireless 5 GHz generation

Wi-Fi 6

WiFi speed

AX3600

10/100/1000 Ethernet ports

5

Number of 1G Ethernet ports with PoE-out

1

Number of USB ports

1

USB Power Reset

Yes

USB slot type

USB 3.0 type A

Max USB current (A)

1.5

Number of DC inputs

1 (DC jack)

DC jack input Voltage

18-57 V

Max power consumption

55 W (Networked standby (HiNA) ≤ 8 W)

Max power consumption without attachments

18 W

Cooling type

Passive

PoE-out ports

Ether5

PoE out

Passive PoE up to 57V

Low voltage PoE-Out current limit

600 mA

High voltage PoE-Out current limit

500 mA

Max total out (A)

0.600 A

Total output current

0.600

Total output power

22.8

Certification

CE, FCC, IC, EAC, ROHS

IP

20

CPU temperature monitor

Yes

PCB temperature monitor

Yes

Voltage Monitor

Yes

Mode button

Yes

Included power adapter

48 V 1.35 A

Included cable

UTP Flat Cable (1.5m)
