سوئیچ فضای باز میکروتیک MikroTik GPERx6 مدل CSS606-1G-2Gi-3S+OUT

مشخصات

Brand

MikroTik

Model

GPERx6

Product code

CSS606-1G-2Gi-3S+OUT

Device type

Outdoor switch

Switch chip model

88E6193X

Operating system

SwOS

10/100/1000 Ethernet ports

3

1G Ethernet ports with PoE-in

1 (Ether1)

1G Ethernet ports with PoE-out

2 (Ether2–Ether3)

10G SFP+ ports

3

PoE-in standard

802.3bt

PoE-in input voltage

42–57 V

PoE-out type

Passive PoE, up to 57 V

Low-voltage PoE-out current limit

1.2 A per port

High-voltage PoE-out current limit

0.625 A per port

Maximum total PoE-out current

2.4 A

Total output power

150 W

Number of DC inputs

2 (DC jack, PoE-in)

DC jack input voltage

12–57 V

DC-out ports

3 (DC1–DC3)

Maximum total DC-out current

3.6 A

Maximum power consumption

160 W

Maximum power consumption without attachments

6 W

Cooling type

Passive

CPU temperature monitor

Yes

Tested ambient temperature

−40 °C to +70 °C

MTBF

Approximately 200,000 hours at 25 °C

Ingress protection

IP66

Dimensions

406 × 116 × 76 mm

Certifications

CE, EAC, RoHS

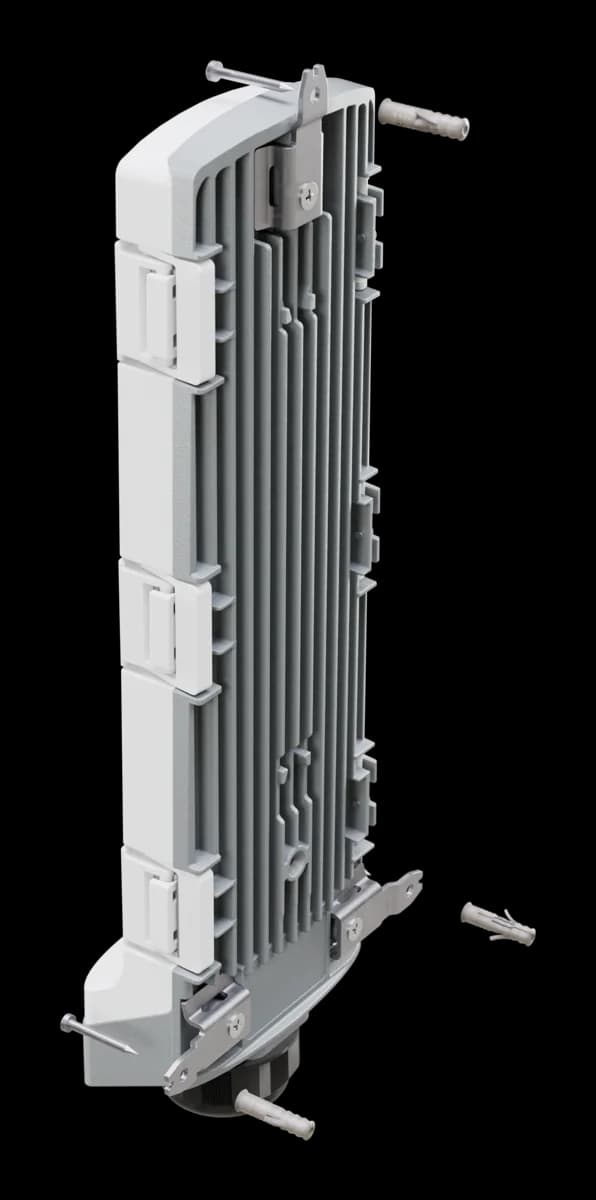

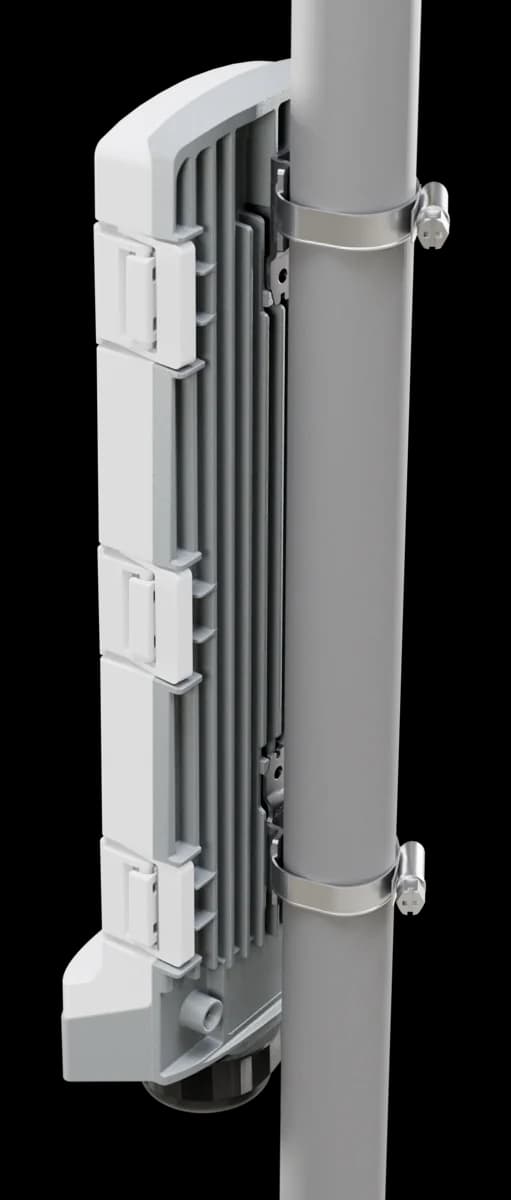

Included parts

K-93 mounting kit; Hose clamp 2
