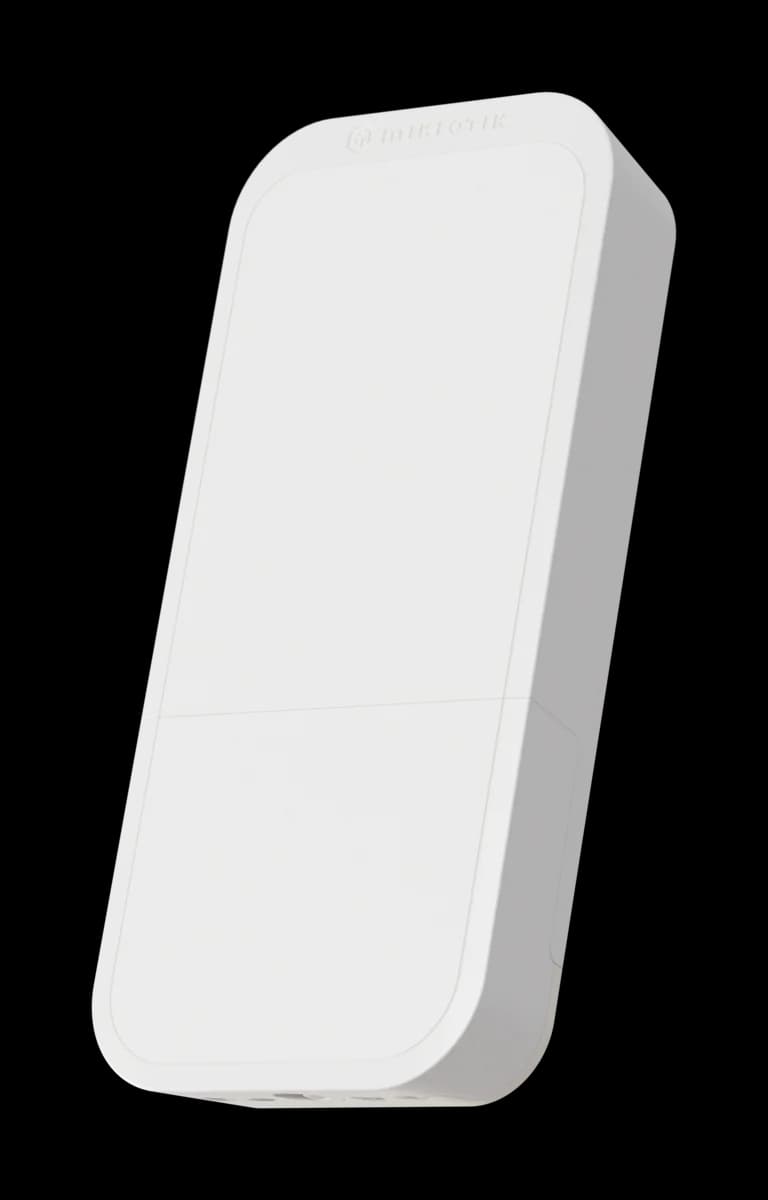

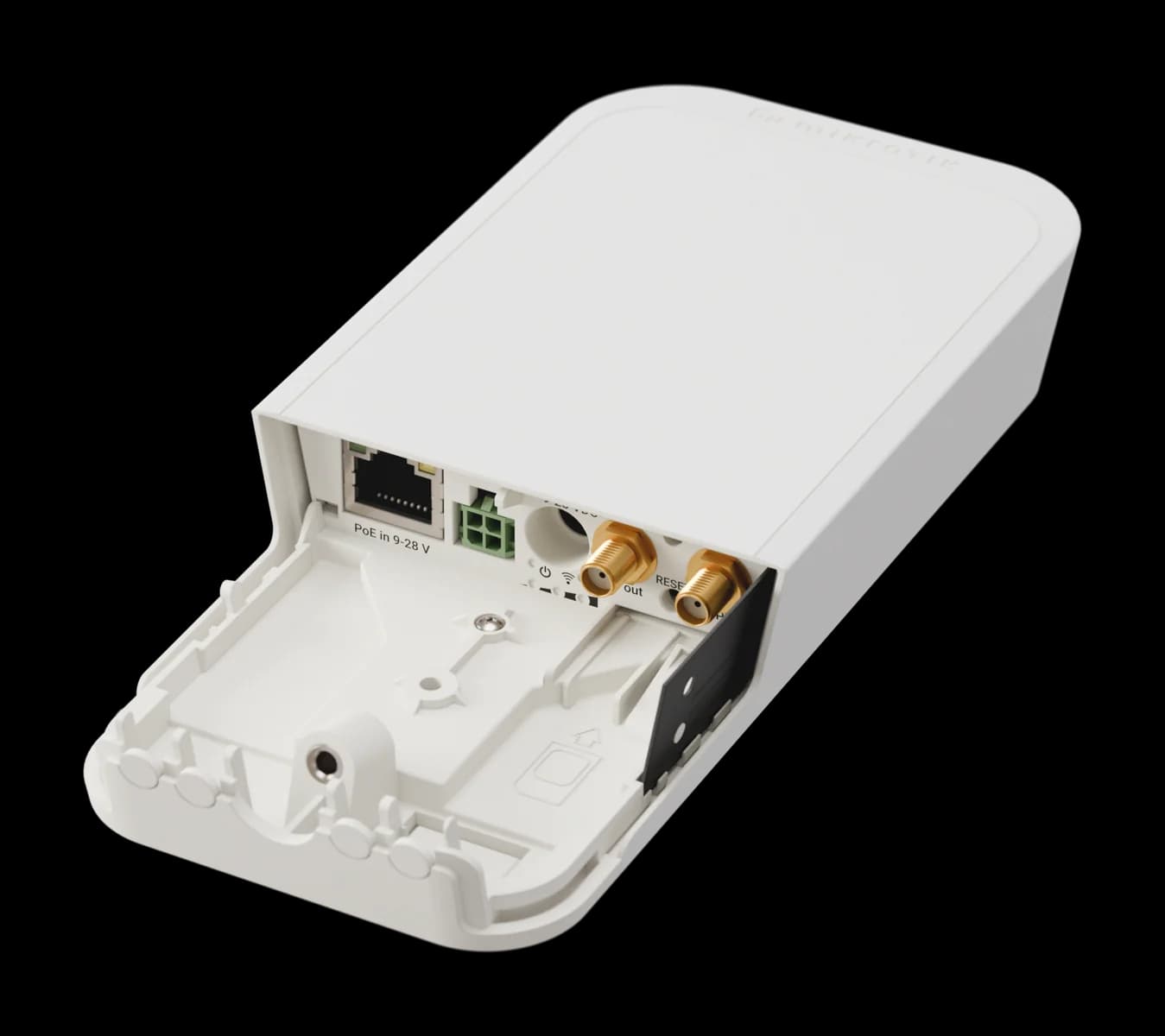

کیت اینترنت اشیا MikroTik wAP LR9G kit

مشخصات

Product code

RBwAPR-2nD&R11e-LR9G

Architecture

MIPSBE

CPU

QCA9531

CPU core count

1

CPU nominal frequency

650 MHz

RouterOS license

4

Operating system

RouterOS v7

RAM size

64 MB

Storage size

16 MB

Storage type

FLASH

MTBF

Approximately 200,000 hours at 25°C

Tested ambient temperature

-40°C to 60°C

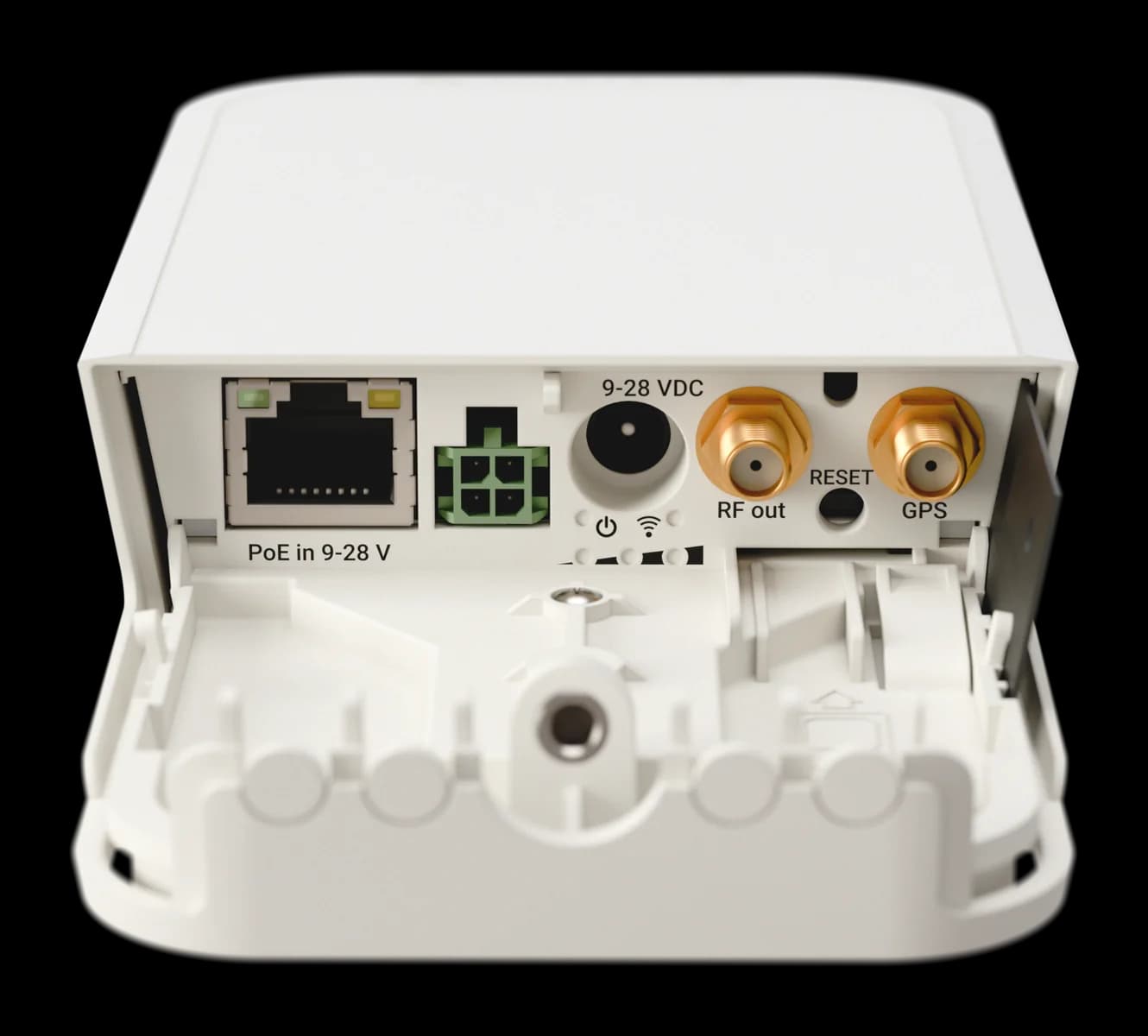

DC inputs

3 (DC jack, PoE-IN, Automotive)

DC jack input voltage

9–28 V

Automotive input voltage

12–30 V

PoE-in

Passive PoE

PoE-in input voltage

9–28 V

Maximum power consumption

7 W

Cooling

Passive

2.4 GHz maximum data rate

300 Mbit/s

2.4 GHz chains

2

Wireless standards

802.11b/g/n

2.4 GHz antenna gain

2 dBi

Wireless chip model

QCA9531

Wi-Fi generation

Wi-Fi 4

10/100 Ethernet ports

1

SIM slots

1 Modem (Mini SIM)

MiniPCI-e slots

1

PCB temperature monitor

Yes

Voltage monitor

Yes

GPS RF connector type

uUFL

Certification

FCC, IC, EAC

Ingress protection

IP54

LoRa frequency

915 MHz

LoRa receive sensitivity

Up to -141 dBm

GPS

Built-in, MT3337V

External antenna connectors

SMA female

Included parts

24V 0.8A power adapter; K-52 fastening set; wAP desktop stand; wAP mount; one metal ring; 0.35m 4-pin Automotive adapter cable; PoE injector

2.4 GHz transmit power / receive sensitivity

1MBit/s: 22 dBm / -96 dBm; 11MBit/s: 22 dBm / -89 dBm; 6MBit/s: 20 dBm / -93 dBm; 54MBit/s: 18 dBm / -74 dBm; MCS0: 20 dBm / -93 dBm; MCS7: 16 dBm / -71 dBm
