مشخصات

Product code

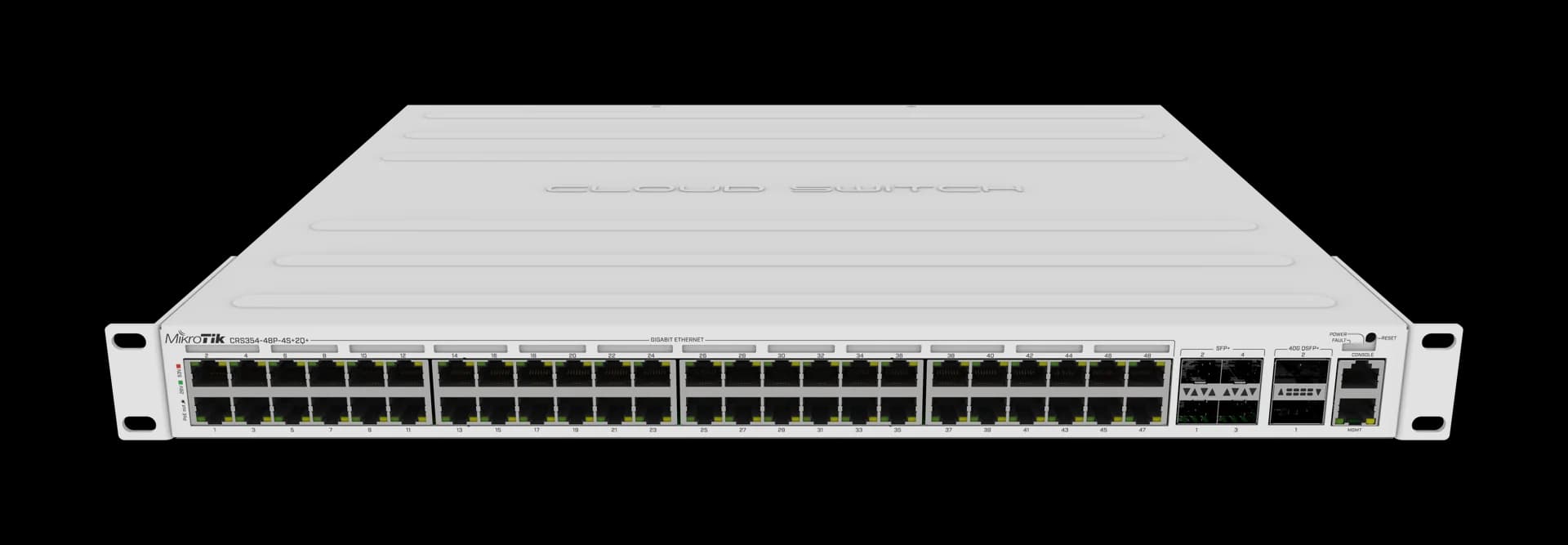

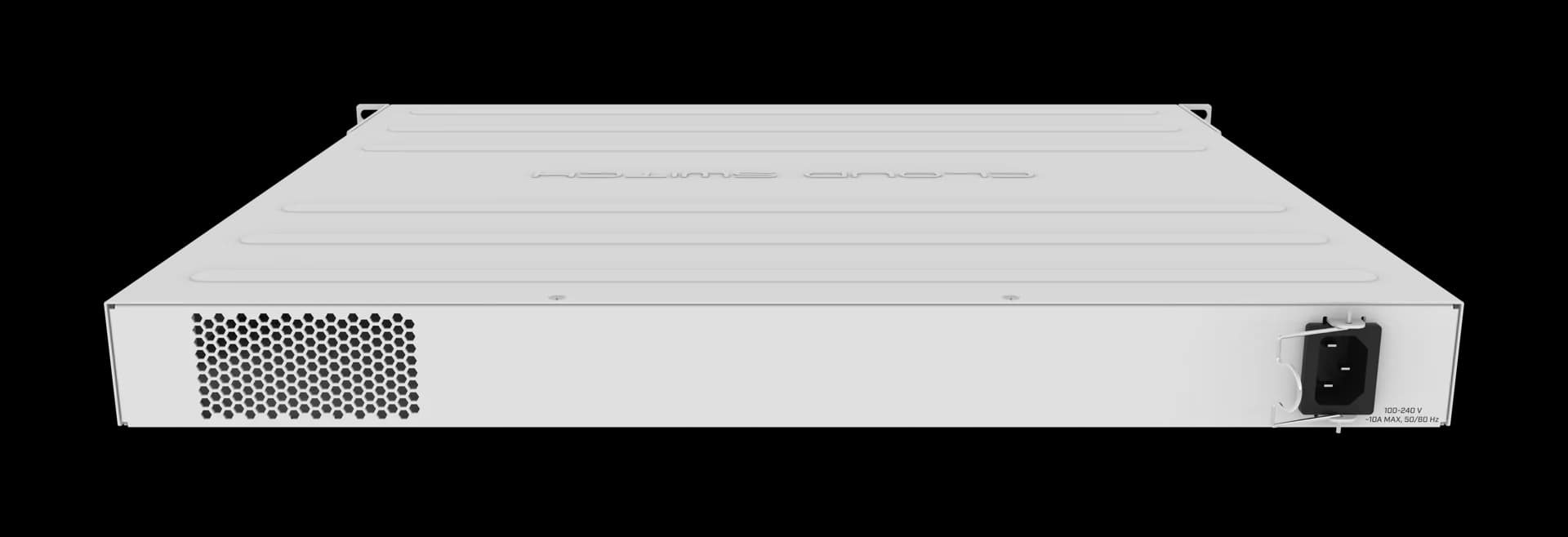

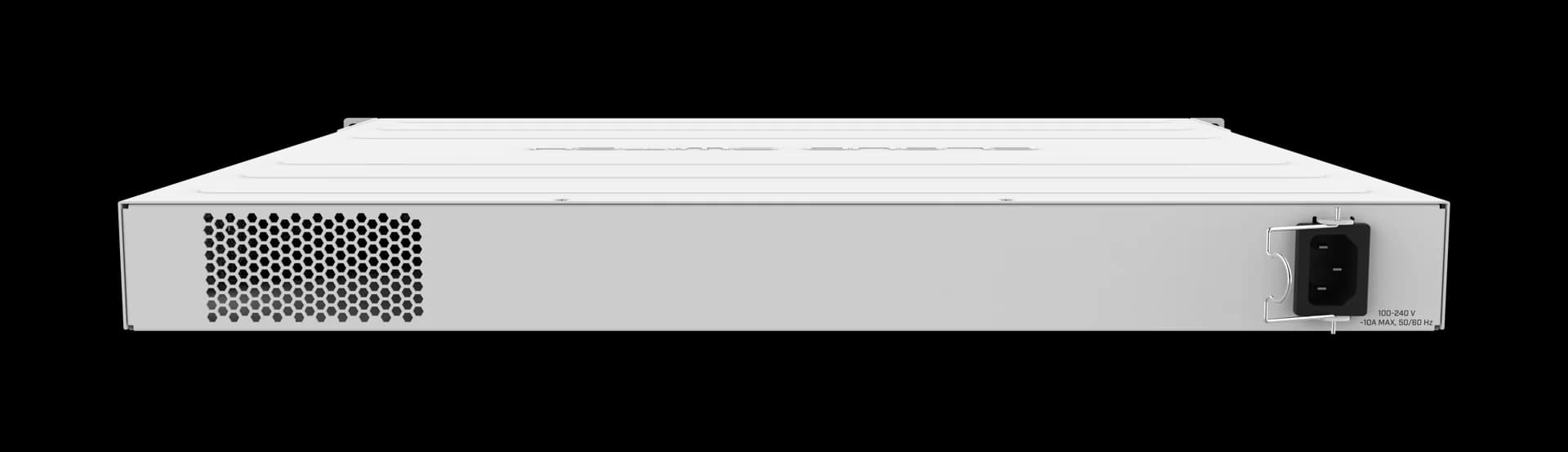

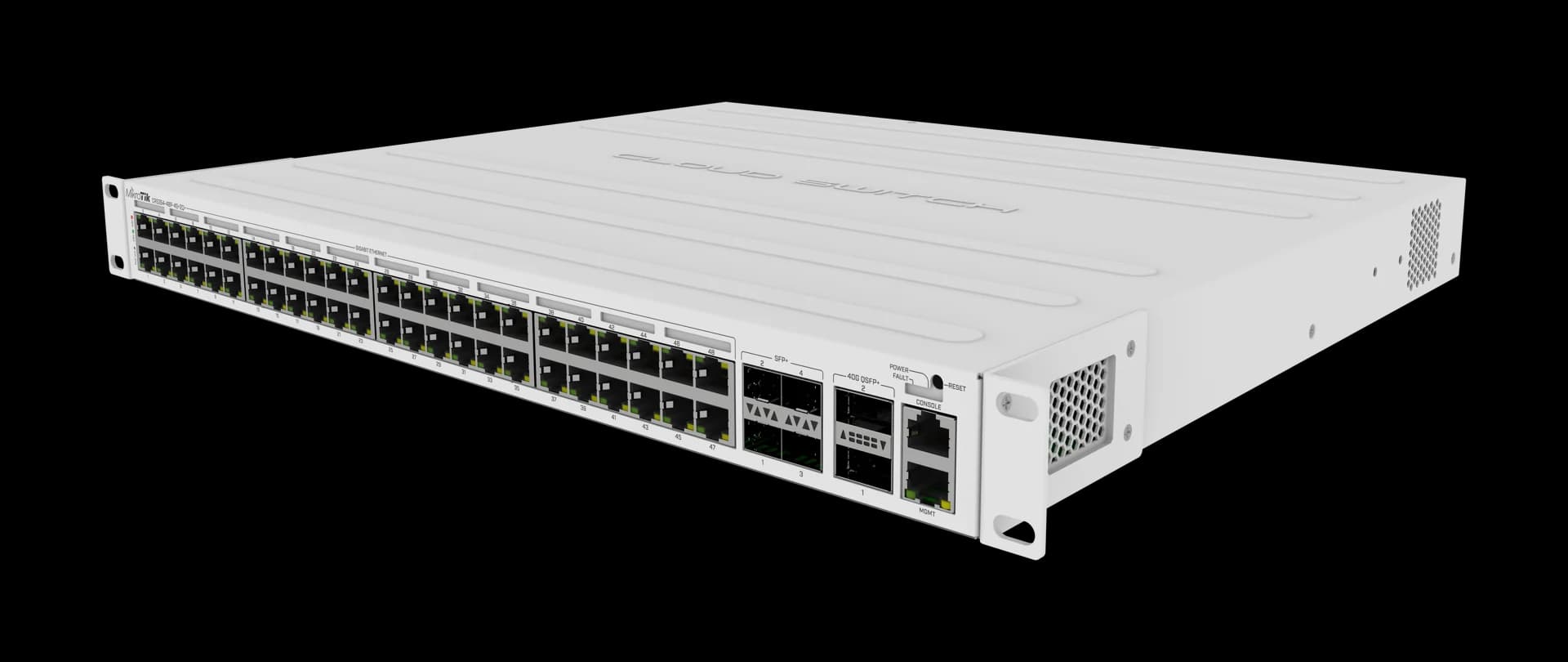

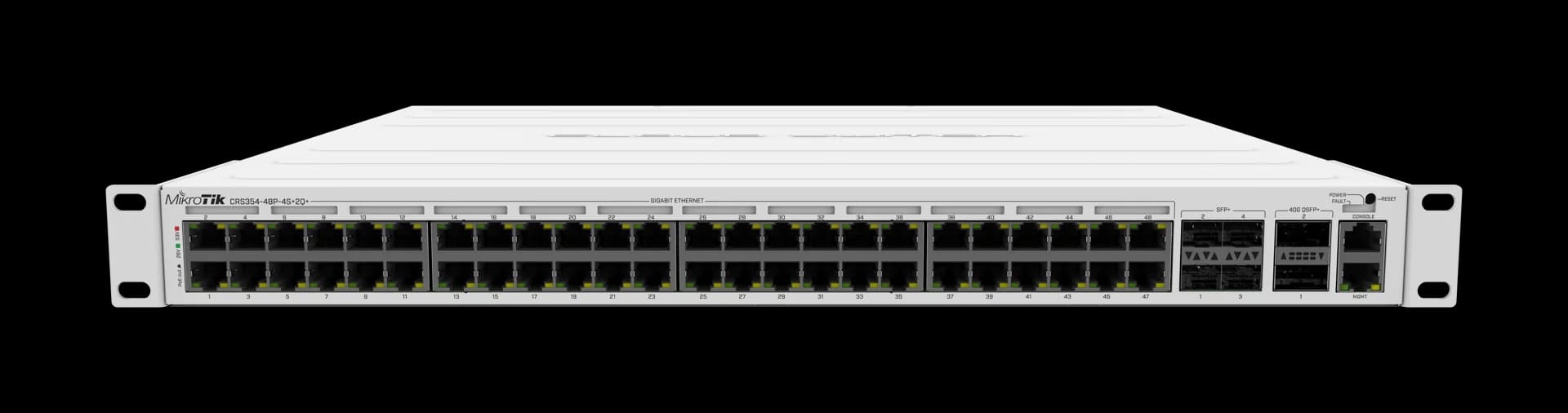

CRS354-48P-4S+2Q+RM

Brand

MikroTik

Architecture

MIPSBE

CPU

QCA9531

CPU core count

1

CPU nominal frequency

650 MHz

Switch chip model

98DX3257

Dimensions

443 x 382 x 44 mm

RouterOS license

5

Operating system

RouterOS v7 / SwitchOS

RAM

128 MB

Storage

32 MB FLASH

MTBF

Approximately 200,000 hours at 25°C

Tested ambient temperature

-20°C to 60°C

AC input

1 input; 100–240 V AC; 50–60 Hz

PSU slots

1

Maximum power consumption

800 W

Maximum power consumption without attachments

85 W

Cooling

4 fans

PoE-out ports

Ether1–Ether48

PoE-out standards

802.3af/at; passive PoE and low-voltage PoE-out

Low-voltage PoE-out current limit

1000 mA

High-voltage PoE-out current limit

570 mA

Total output current

27 A at 26 V or 13.2 A at 53 V

Total PoE output power

700 W

10/100 Ethernet ports

1

10/100/1000 Ethernet ports

48

SFP+ ports

4

40G QSFP+ ports

2

Serial console

RJ45

CPU temperature monitor

Yes

Current monitor

Yes

PCB temperature monitor

Yes

Voltage monitor

Yes

Certification

CE, EAC, RoHS

Ingress protection

IP20

Non-blocking throughput

168 Gbps

Switching capacity

336 Gbps

Forwarding rate

235 Mpps

Included accessories

IEC cord, cable management brackets, rackmount ears, rear support ears, K-48 fastening set
