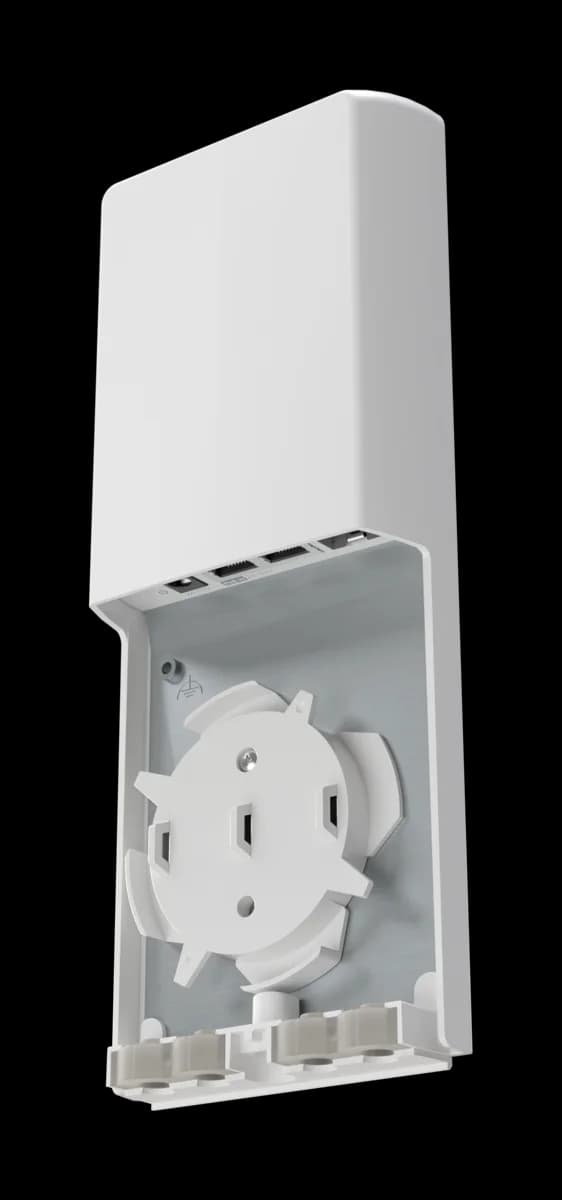

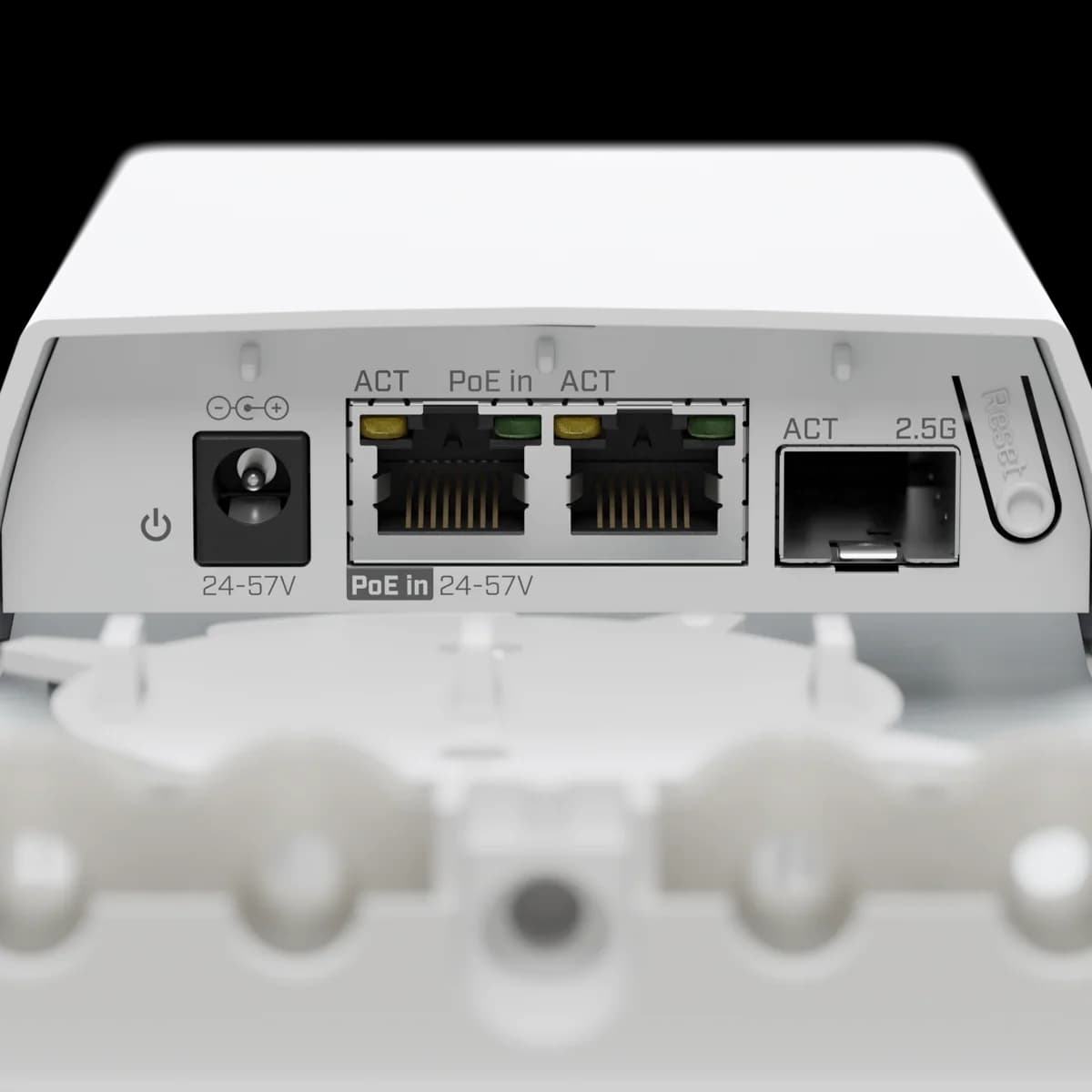

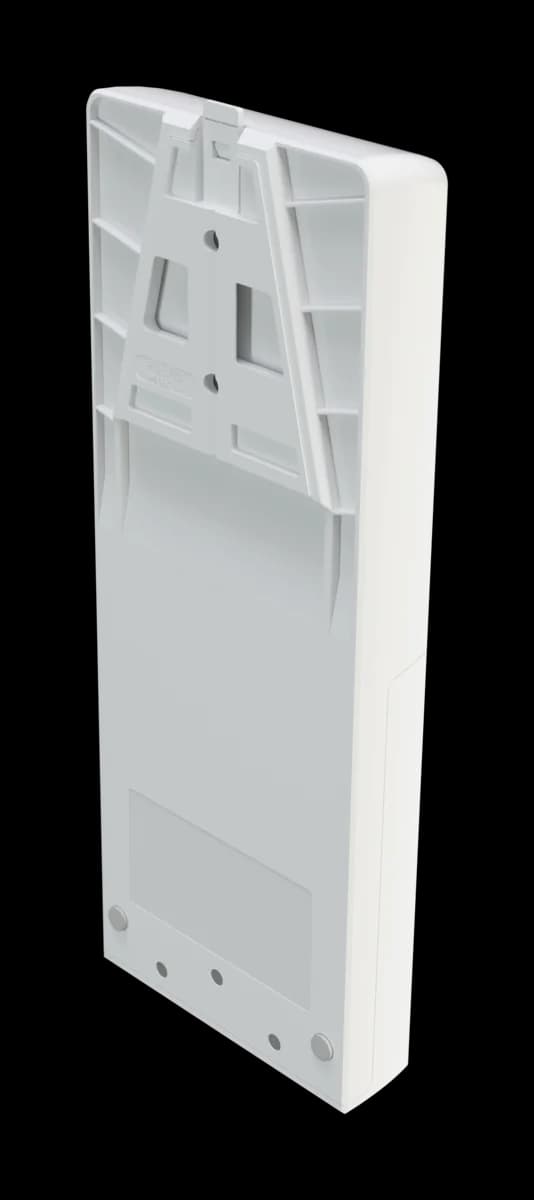

مبدل فیبر به اترنت MikroTik FTC21

مشخصات

Product code

FTC21

Switch chip model

88E6341

MTBF

Approximately 100,000 hours at 25°C

Tested ambient temperature

-40°C to 70°C

Number of DC inputs

2 (DC jack, PoE-IN)

DC jack input voltage

24–57 V

PoE-in

802.3af/at

PoE-in input voltage

24–57 V

Maximum power consumption

4 W

Maximum power consumption without attachments

3 W

Cooling type

Passive

10/100/1000 Ethernet ports

2

SFP ports

1 (2.5G supported)

Management operating system

SwOS Lite

Interface management and monitoring

Supported

VLAN support

Supported

SNMP reporting

Supported

Traffic shaping

Basic

Packet filtering

Advanced ACL filtering based on Layer 2, 3, and 4 protocol header conditions; supports filtering, accounting, and VLAN tagging

Certification

CE, EAC, RoHS

Ingress protection rating

IP55

Layer 2 throughput, non-blocking

1518-byte: 325.1 kpps / 3948.0 Mbps; 512-byte: 939.8 kpps / 3849.4 Mbps; 64-byte: 5952.4 kpps / 3047.6 Mbps

Layer 2 capacity, non-blocking

1518-byte: 325.1 kpps / 7896.0 Mbps; 512-byte: 939.8 kpps / 7698.8 Mbps; 64-byte: 5952.4 kpps / 6095.2 Mbps

Layer 1 throughput, non-blocking

1518-byte: 325.1 kpps / 4000.0 Mbps; 512-byte: 939.8 kpps / 4000.0 Mbps; 64-byte: 5952.4 kpps / 4000.0 Mbps

Layer 1 capacity, non-blocking

1518-byte: 325.1 kpps / 8000.0 Mbps; 512-byte: 939.8 kpps / 8000.0 Mbps; 64-byte: 5952.4 kpps / 8000.0 Mbps

Included parts

K-81 fastening set; Gigabit PoE injector; 48 V 0.95 A power adapter
