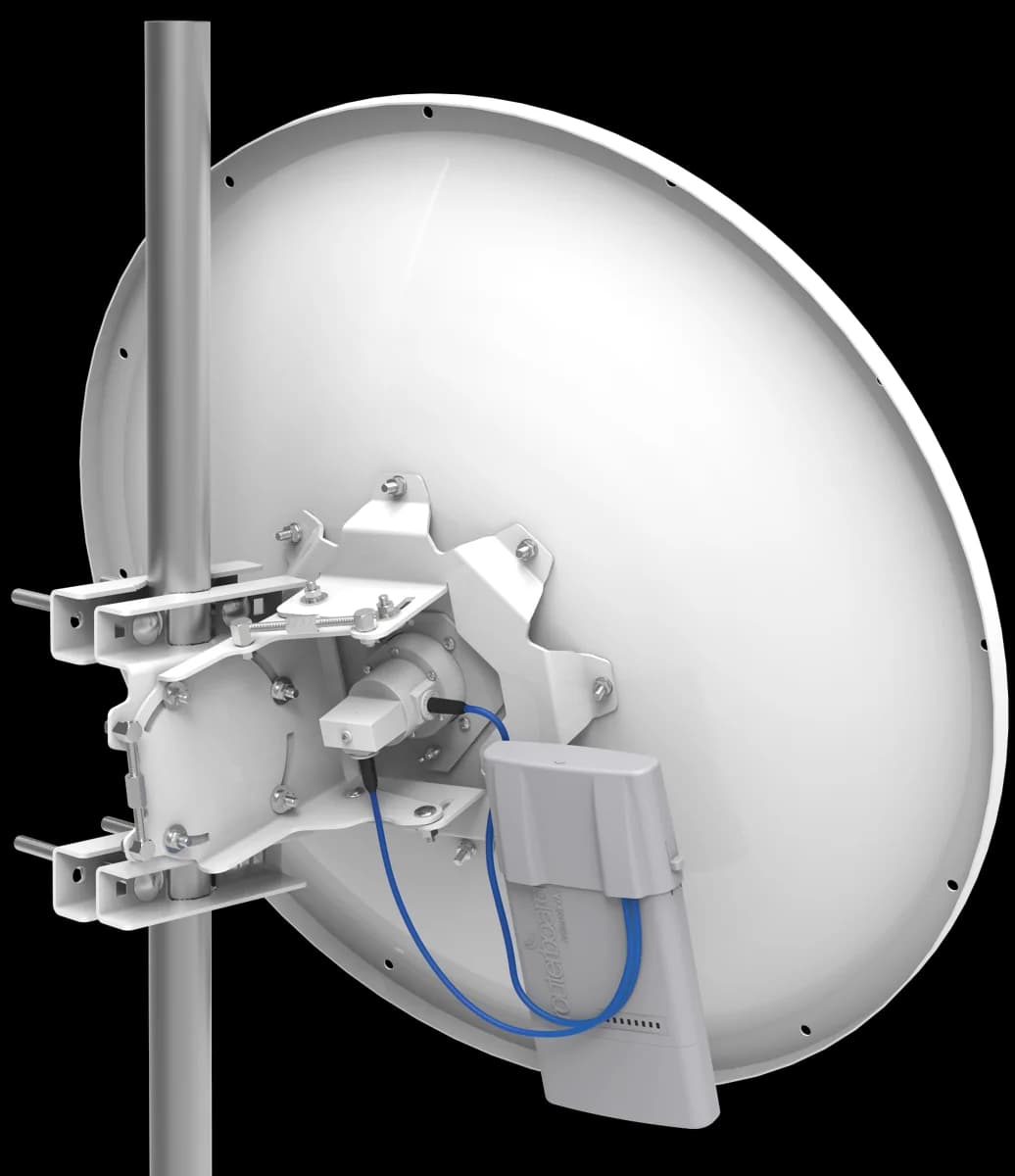

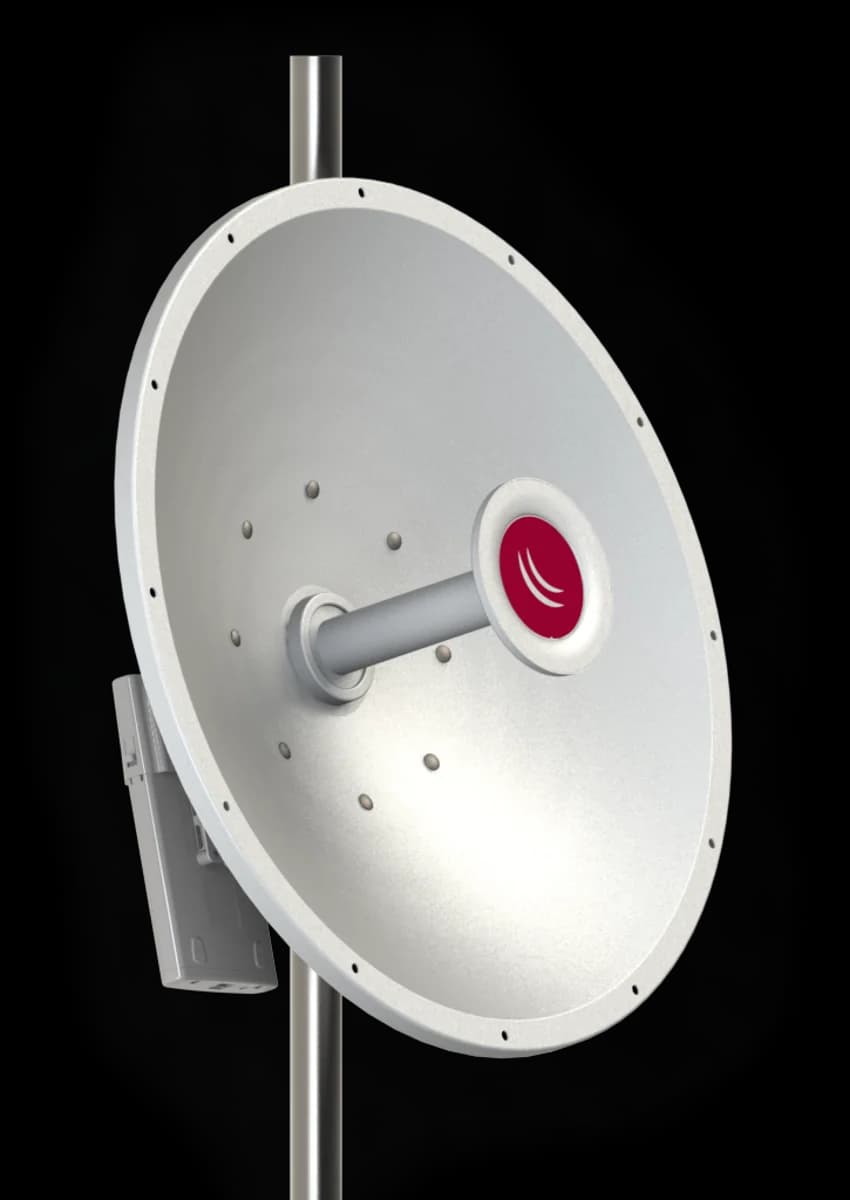

آنتن دیش MikroTik mANT30 PA

مشخصات

Product code

MTAD-5G-30D3-PA

Beamwidth

±2.5°

Connector

2x RP-SMA Female (outside thread)

Cross Polarization

>40 dB

Diameter x Depth

70 x 45 cm (27.5 x 17.8 in)

Elevation adjustment range

±15°

Frequency Range

4.7–5.875 GHz

Front-to-Back Ratio

>30 dB

Impedance

50 ohms

Outdoor Rating

ETSI EN 300 019-2-4

Packaged size

73 x 73 x 20 cm (29 x 29 x 8 in)

Packaged weight

8.4 kg (18.5 lb)

Polarization

Vertical and Horizontal

Pole Mount Diameter Range

3 to 10 cm (1.2 to 3.9 in)

Port to Port Isolation

>40 dB min

Power Rating

100 W

Reflector

Aluminum

Standards

EN 302 326 DN1, DN2, DN3, DN5

Tested ambient temperature

−50°C to 80°C (−49°F to 158°F)

VSWR

≤1.4 typ, ≤1.8 max

Weight

5.7 kg (12.6 lb)

Wind Load (125 mph)

181.4 kg (400 lb), 50 kg at 40 m/s, 28 kg at 30 m/s

Wind Survivability

201 kph (125 mph)

Certification

CE, RoHS
