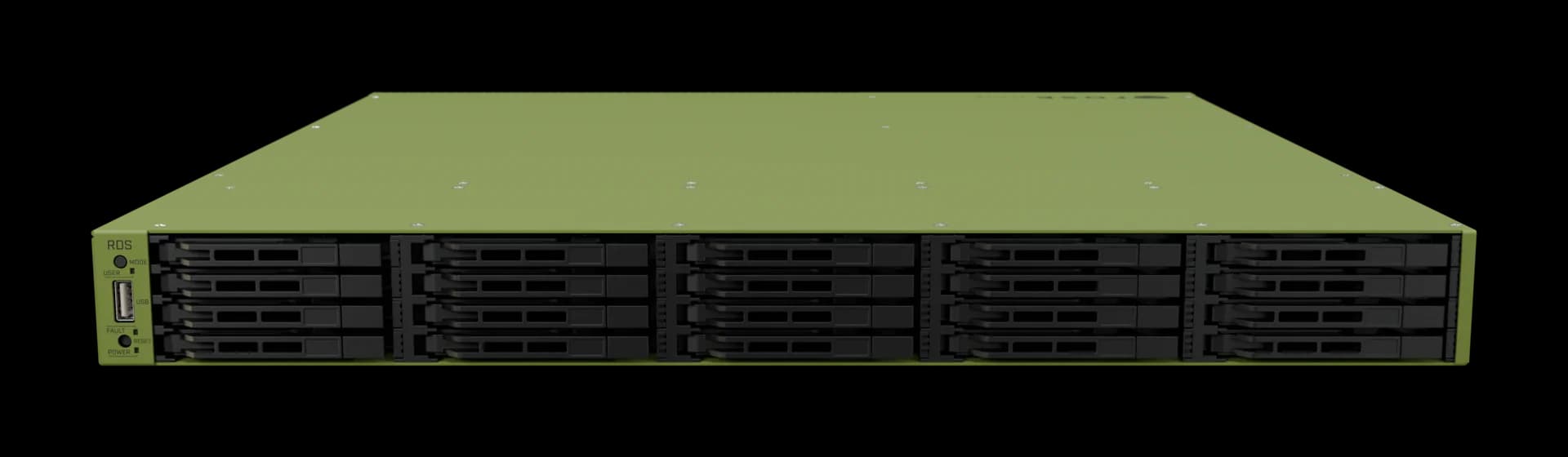

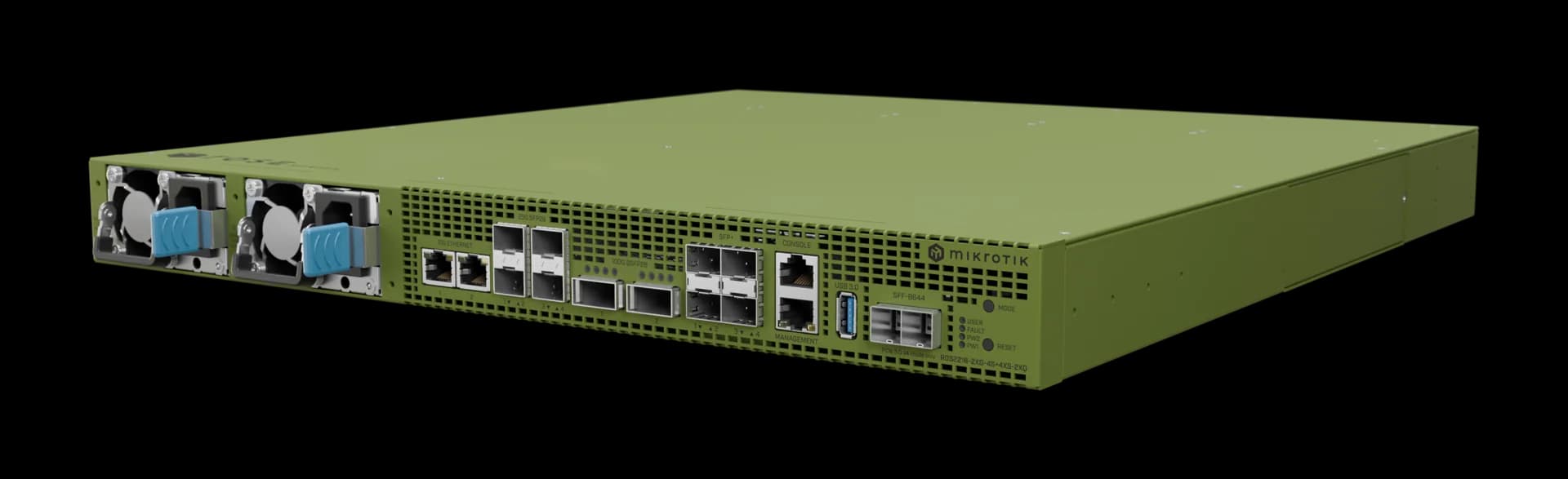

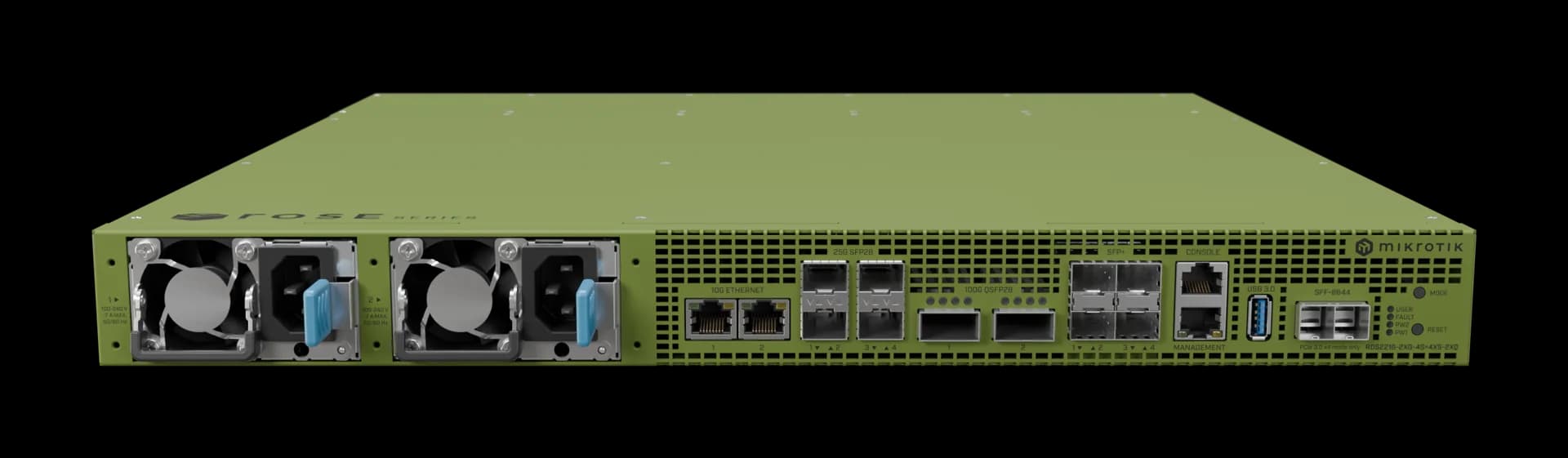

سرور داده MikroTik ROSE Data server (RDS)

مشخصات

Brand

MikroTik

Product code

RDS2216-2XG-4S+4XS-2XQ

Architecture

ARM 64bit

CPU

AL73400

CPU core count

16

CPU nominal frequency

2000 MHz

CPU threads count

16

Switch chip model

98DX4310

Dimensions

476 x 443 x 44 mm

RouterOS license

6

Operating system

RouterOS v7 (Special ROSE edition)

RAM size

32 GB

Storage size

128 MB

Storage type

NAND

NVMe drive slots

20 x U.2

MTBF

Approximately 200,000 hours at 25°C

Tested ambient temperature

-20°C to 50°C

AC inputs

2

AC input range

100-240 V

AC frequency

50-60 Hz

Maximum power consumption

286 W

Maximum power consumption without attachments

105 W

Cooling

10 fans

10/100/1000 Ethernet ports

1

1G/2.5G/5G/10G Ethernet ports

2

SFP+ ports

4

25G SFP28 ports

4

100G QSFP28 ports

2

Serial console port

RJ45

USB ports

2

USB power reset

Yes

USB slot type

USB 3.0 Type-A

Maximum USB current

1 A

M.2 slots

2

CPU temperature monitor

Yes

PCB temperature monitor

Yes

Voltage monitor

Yes

Mode button

Yes

Certification

CE, EAC, ROHS

IP rating

IP20

Included power supplies

Dual hot-swappable power supplies

Additional interface

SFF-8644

Power cord

2 x IEC cord

Included mounting accessories

K-90 fastening set; ROSE rackmount ears; small rear support ears; long rear rackmount support ears
